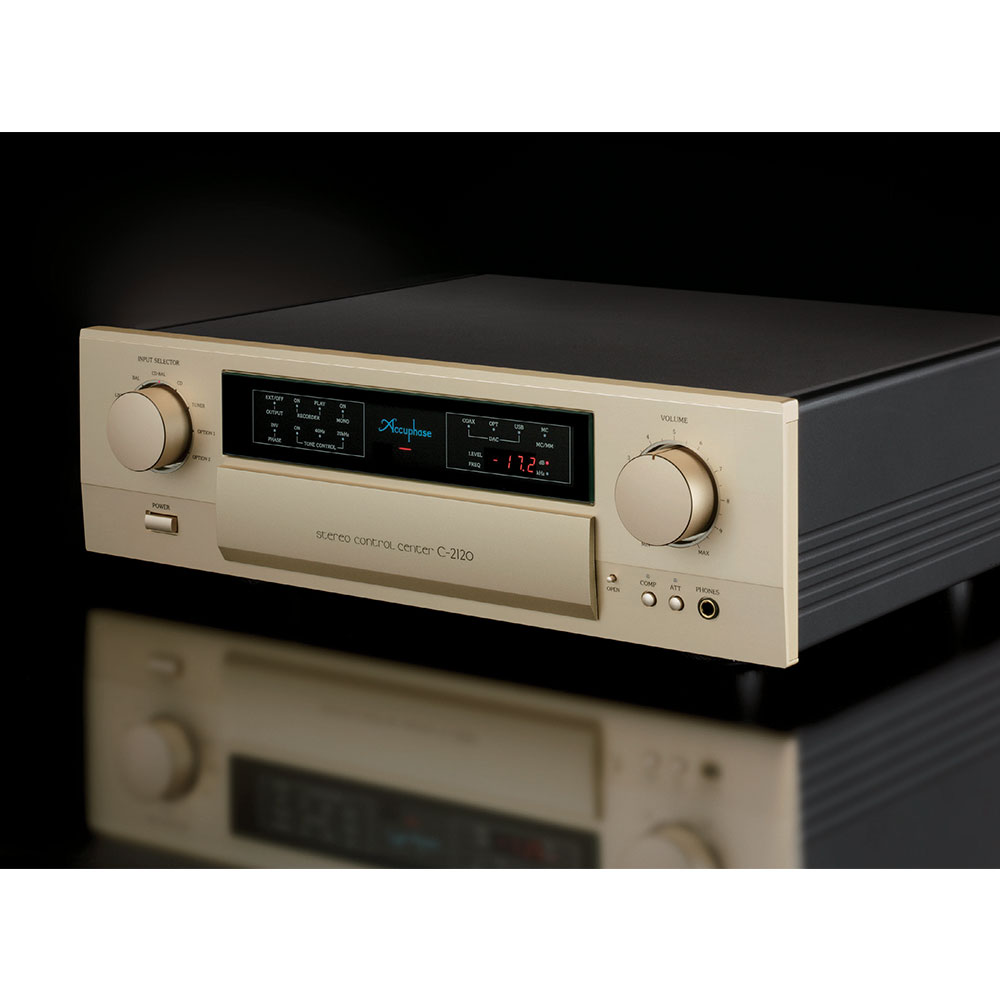

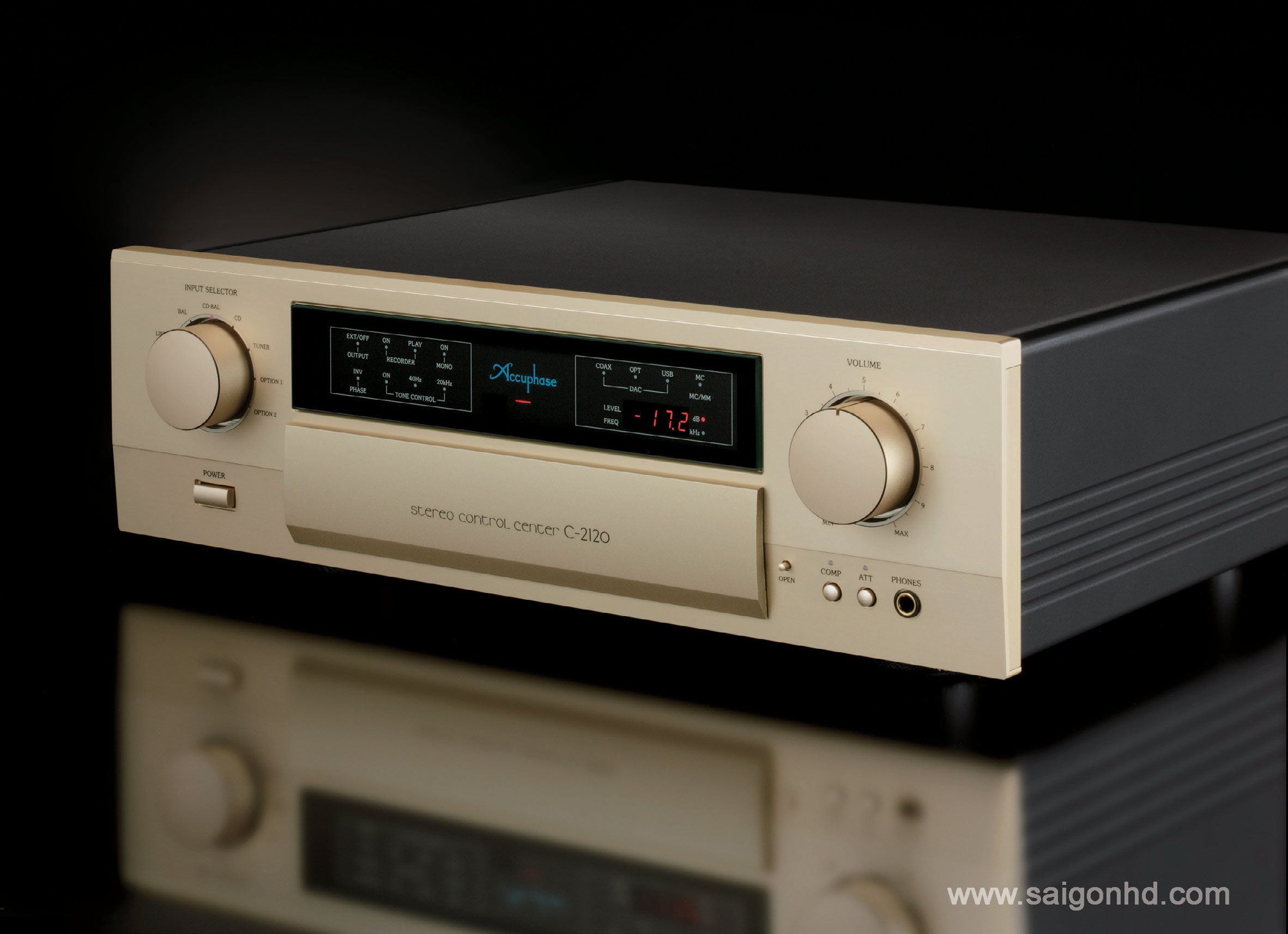

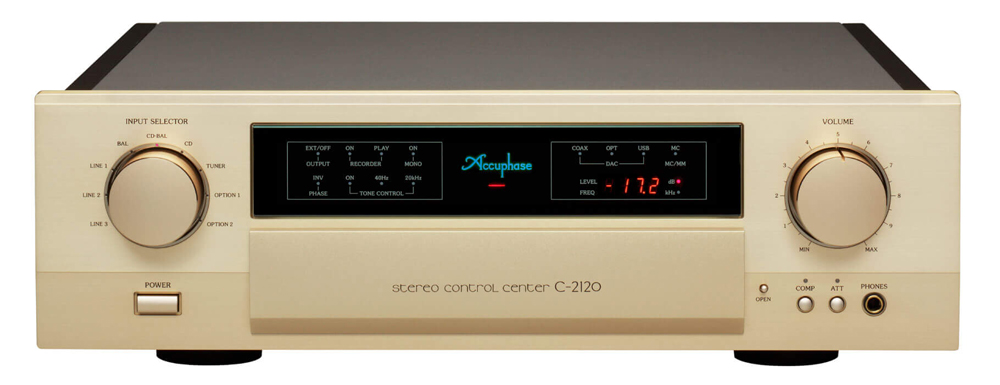

ACCUPHASE C2120

Accuphase’s ground-breaking AAVA (Accuphase Analog Vari-gain Amplifier) volume control, first introduced in the model C-2800, has been continually further refined and improved. AAVA operates fully in the analog domain, but it eliminates all potentiometers from the signal path. This has a number of advantages, such as (1) outstanding S/N ratio, (2) extremely low distortion, (3) virtually no change in frequency response and sound quality at any listening level, (4) minimal left/right level differences (tracking errors), and (5) minimal left/right crosstalk. The result is a volume control that far surpasses conventional concepts.

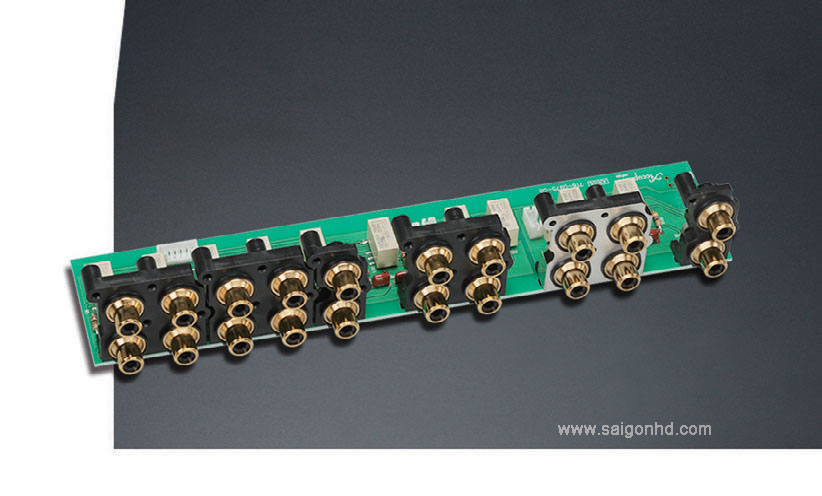

A range of sophisticated option boards opens up even more possibilities. The newly developed Digital Input Board DAC-40 features a USB port and support for high-bit, high-sampling frequency signals up to 192 kHz/24 bits.  The newly developed Analog Disc Input Board AD-30 is also available, ideal for high-grade reproduction of analog records using either MC or MM phono cartridges.

• AAVA volume control for high performance and outstanding sound
• Separate power transformers for left and right channels
• Selectable preamp gain

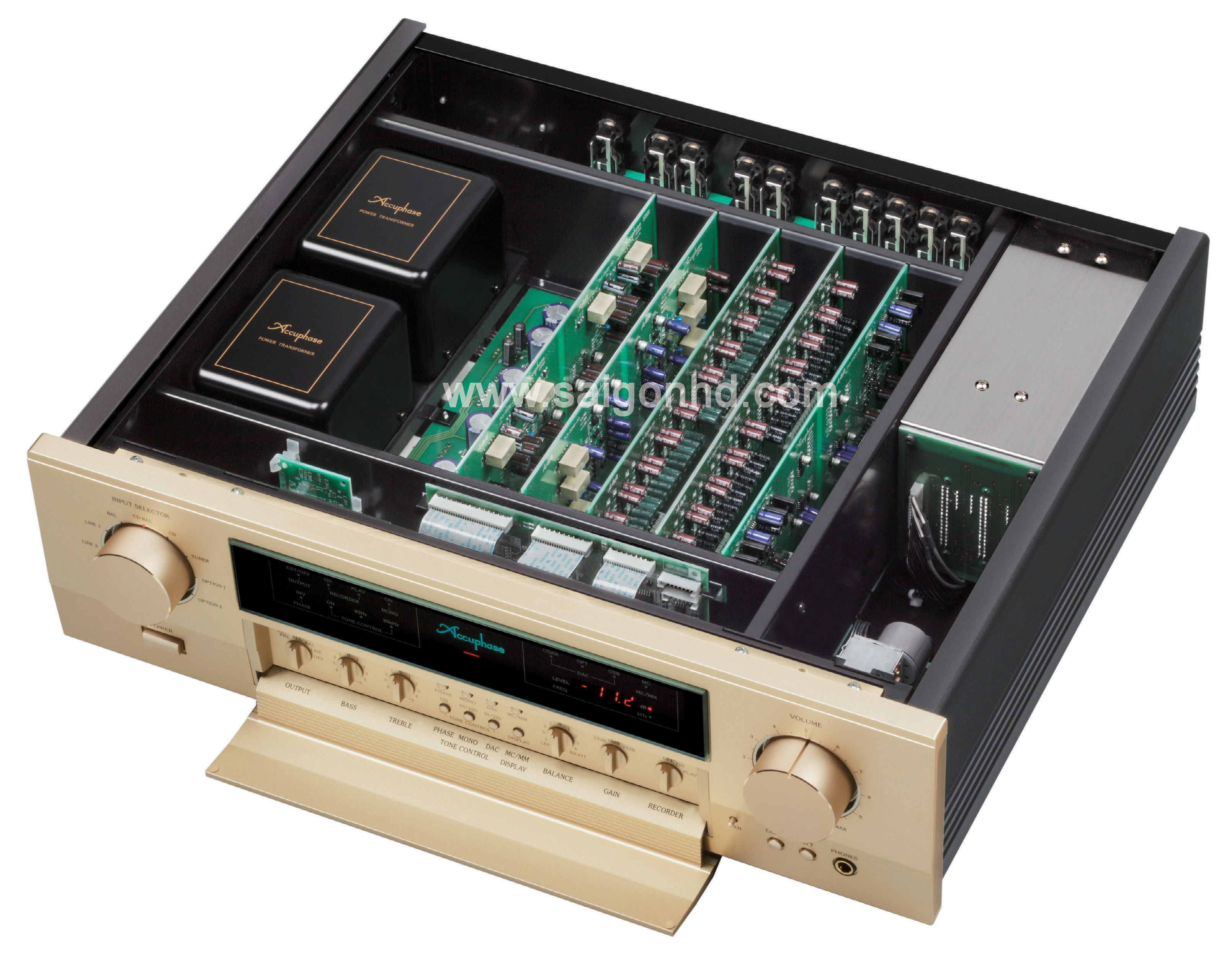

• Fully modular construction with individual left/right amplifier units on motherboard
• Logic-controlled relays for shortest signal paths
• Independent phase selection for each input position
• Tone controls designed for optimum sound quality
• Option board slots provide additional versatility for digital input handling or analog record playback

Specificaitions of ACCUPHASE C2120

• Frequency Response :　 BALANCED/LINE INPUT 3 - 200,000Hz +0 -3.0 dB, 20 - 20,000Hz +0 -0.2 dB
• Total Harmonic Distortion (for all inputs) 0.005%
• Input Sensitivity, Input Impedance
• Rated Output Voltage, Output Impedance
• BALANCED/LINE OUTPUT 2 V 50 ohms
• RECORDER REC (with AD input) 252 mV 200 ohms
• S/N Ratio, Input-converted Noise (gain selector: 18 dB)
• Maximum Output Level (0.005% THD, 20 - 20,000 Hz)
• BALANCED/LINE OUTPUT: 7.0 V
• RECORDER REC (with AD input): 6.0 V
• LINE Maximum Input Level BALANCED/LINE INPUT: 6.0 V
• Minimum Load Impedance BALANCED/LINE OUTPUT: 600 ohms
• RECORDER REC: 10 kilohms
• Gain (gain selector: 18 dB)

　　　　　＊ Gain switchable to 12/18/24 dB

• BALANCED INPUT → BALANCED OUTPUT: 18 dB
• BALANCED INPUT → LINE OUTPUT: 18 dB
• LINE INPUT → BALANCED OUTPUT: 18 dB
• LINE INPUT → LINE OUTPUT: 18 dB
• Tone Controls Bass/Treble controls with selectable turnover frequencies
• BASS: 40/100 Hz ±10 dB
• TREBLE: 8/20 kHz ±10 dB
• Loudness Compensation +6 dB (100 Hz)
• Attenuator -20 dB
• Headphone Jack Suitable impedance: 8 ohms or higher
• Output level: 2 V (40 ohms)
• Power Requirements 120 V/220 V/230 V AC, 50/60 Hz
• (Voltage as indicated on rear panel)
• Power Consumption 30 W
• Maximum Dimensions dsf 465 mm (18-5/16")
• Height 150 mm (5-7/8")
• Depth 405 mm (15-15/16")
• Mass 16.8 kg /25.0 kg in shipping carton
