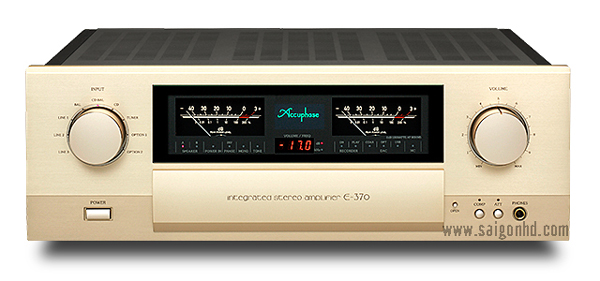

ACCUPHASE E370

E-370 là Ampli tích hợp có công suất 100 x 2 kênh (8Ohm), mạch Push-Pull với transitor bắt song song, cho công suất mạnh mẽ và đánh với dòng loa có trở kháng thấp

Tài liệu tham khảo:

Inheriting outstanding technology from the top-of-the-line E-600 and the high-power version E-470, the E-370 represents a full model change from the E-360.
At the heart of the preamplifier section is the same version of the AAVA volume control as found in the E-600, pushing the noise floor to an absolute minimum. The power amplifier block employs the latest instrumentation amplifier topology, enabling fully balanced signal transmission in all stages. This reliably shuts out external noise interference and ensures perfectly stable operation. As a result, overall S/N ratio has been improved by 3 dB.
Other impressive features include MOS-FET switches in place of relays for speaker protection, helping to ensure superb electrical characteristics and improve long-term reliability. The circuit topology of the output stage is designed for extremely low impedance, resulting in a damping factor of over 400, demonstrating excellent speaker drive capability.

• Revolutionary AAVA volume control.
• Output stage with high power transistors in parallel push-pull configuration produces quality power: 100 watts x 2 into 8 ohms.
• Instrumentation amplifier principle for power amplifier block allows fully balanced signal transmission.
• Logic-control relays for shortest signal paths.

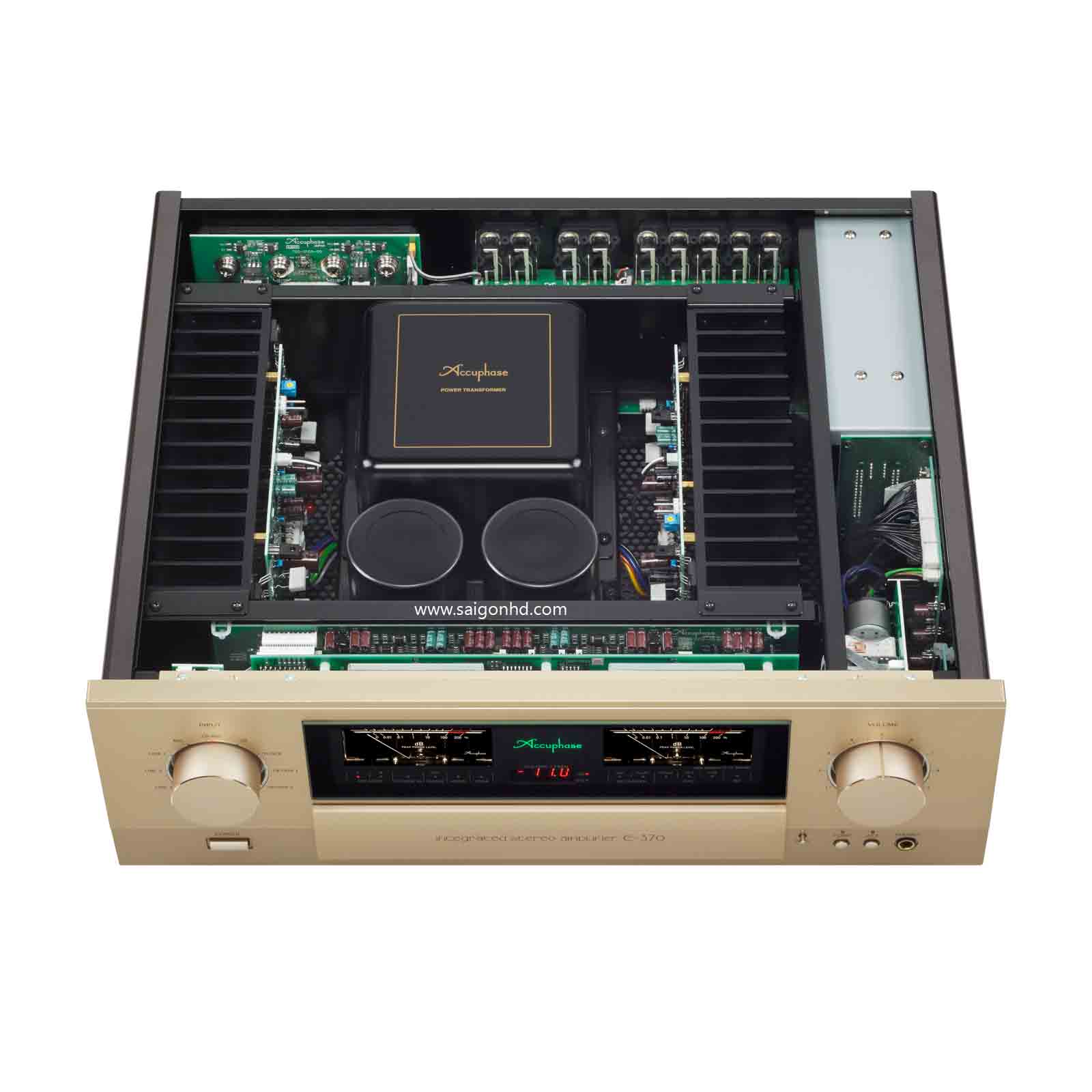

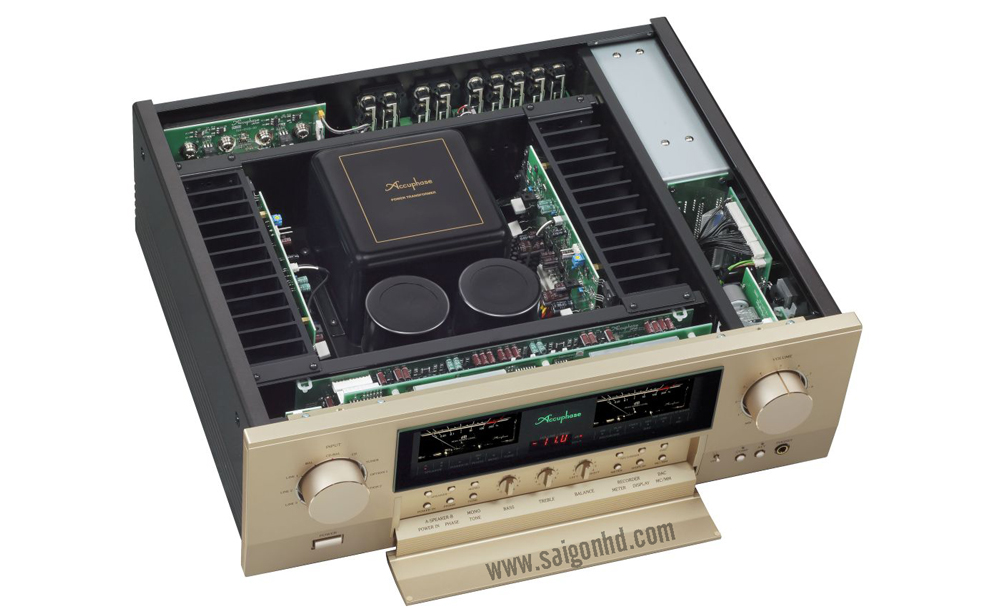

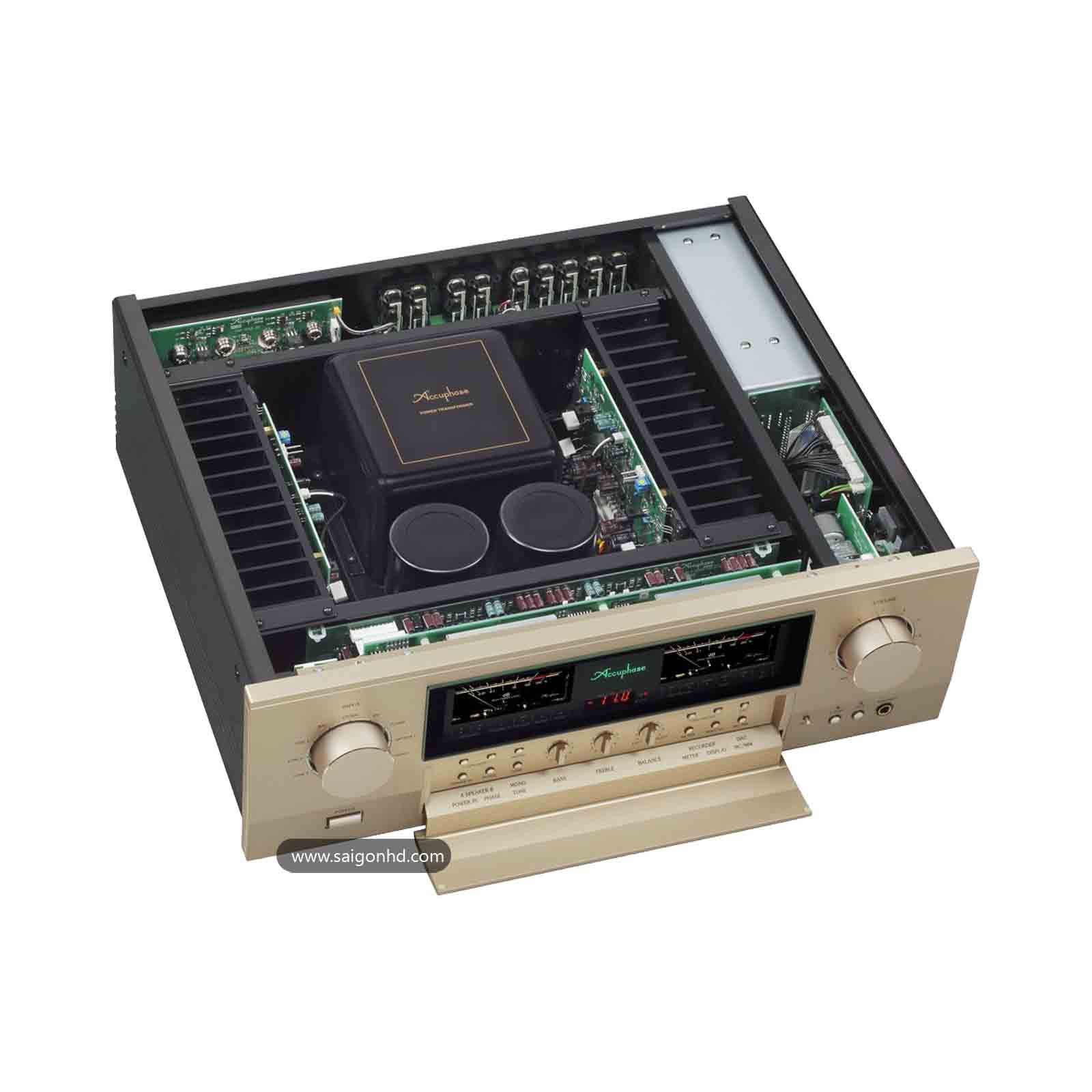

• Strong power supply with massive high-efficiency transformer and large filtering capacitors.
• POWER IN button allows separate use of preamplifier and power amplifier sections.
• Numeric indication of volume level.

Thông số kỹ thuật ACCUPHASE E370

Rated continuous capacity (20 - 20,000 Hz) : 150 W/ch 4-ohm load/100 W/ch 8-ohm load. Total harmonic distortion: 0.05% 4 to 16 ohm load.

S/N ratio :

• HIGH LEVEL INPUT: 107dB.
• BALANCED INPUT: 97dB.
• POWER IN: 123dB.

Tone Controls:

• BASS: 300 Hz ±10 dB (50 Hz).
• TREBLE: 3 kHz ±10 dB (20 kHz).

Loudness Compensation : +6 dB (100 Hz).
Power Meters : Logarithmic peak level indication, shown in dB and %.

Load Impedance :

• 4 - 16 ohms (Terminals A or B).
• 8 - 16 ohms (Terminals A and B simultaneously).

Stereo Headphones: Suitable impedance: 8 ohms or higher.

• Power Requirements: 120 V/230 V AC, 50/60 Hz.
• Power Consumption:
• 46 watts idle.
• 245 watts in accordance with IEC 60065.

Maximum Dimensions:

• Width : 465 mm ( 18-5/16").
• Height : 171 mm ( 6-6/8").
• Depth : 422 mm ( 16-5/8").

Mass:

• 22.7 kg (50.1 lbs) net.
• 29.0 kg (63.1 lbs) in shipping cartonDepth 464 mm .
