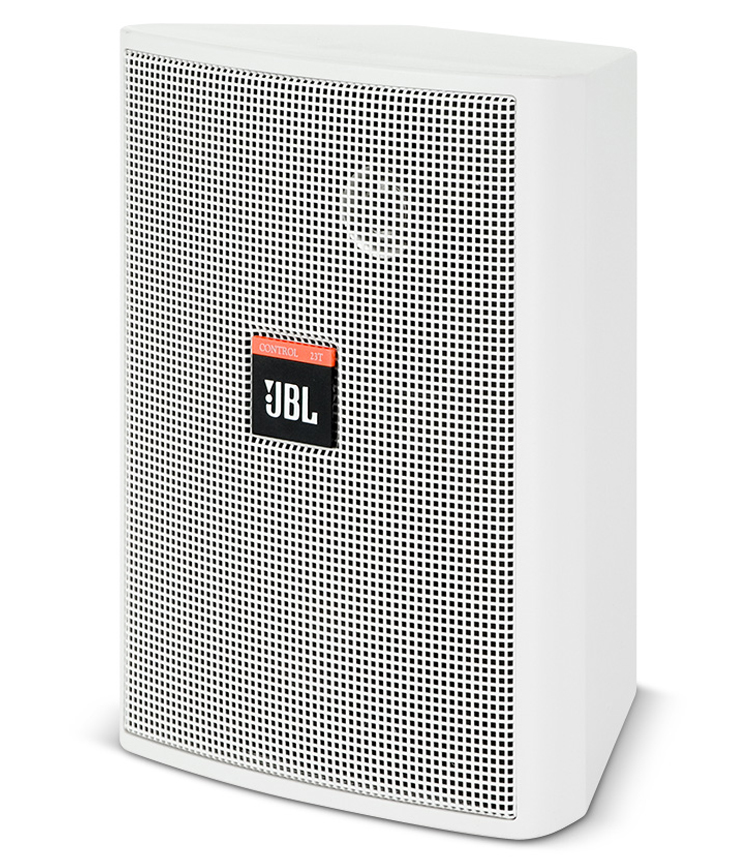

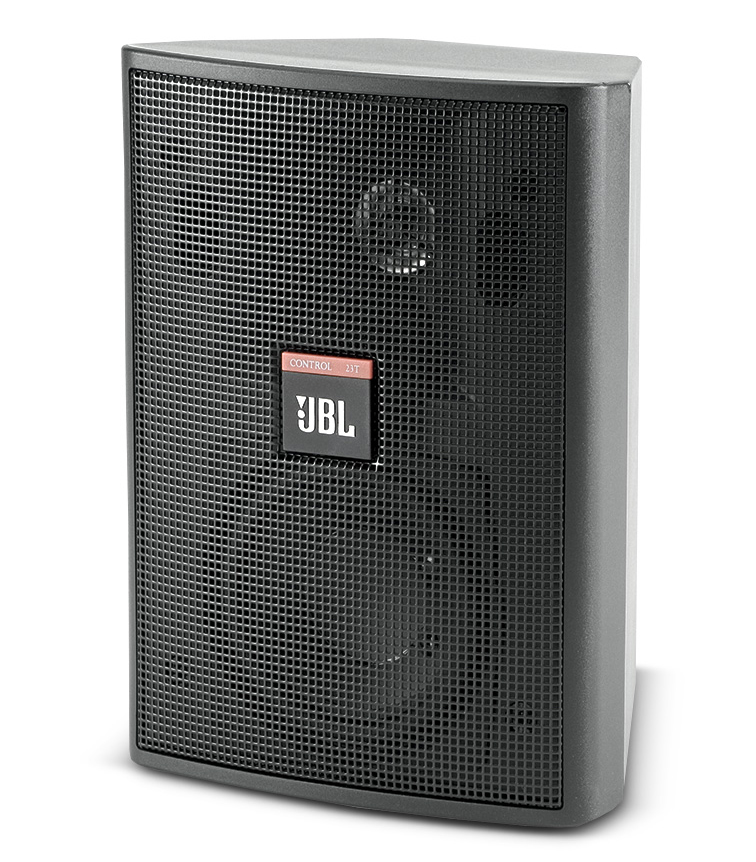

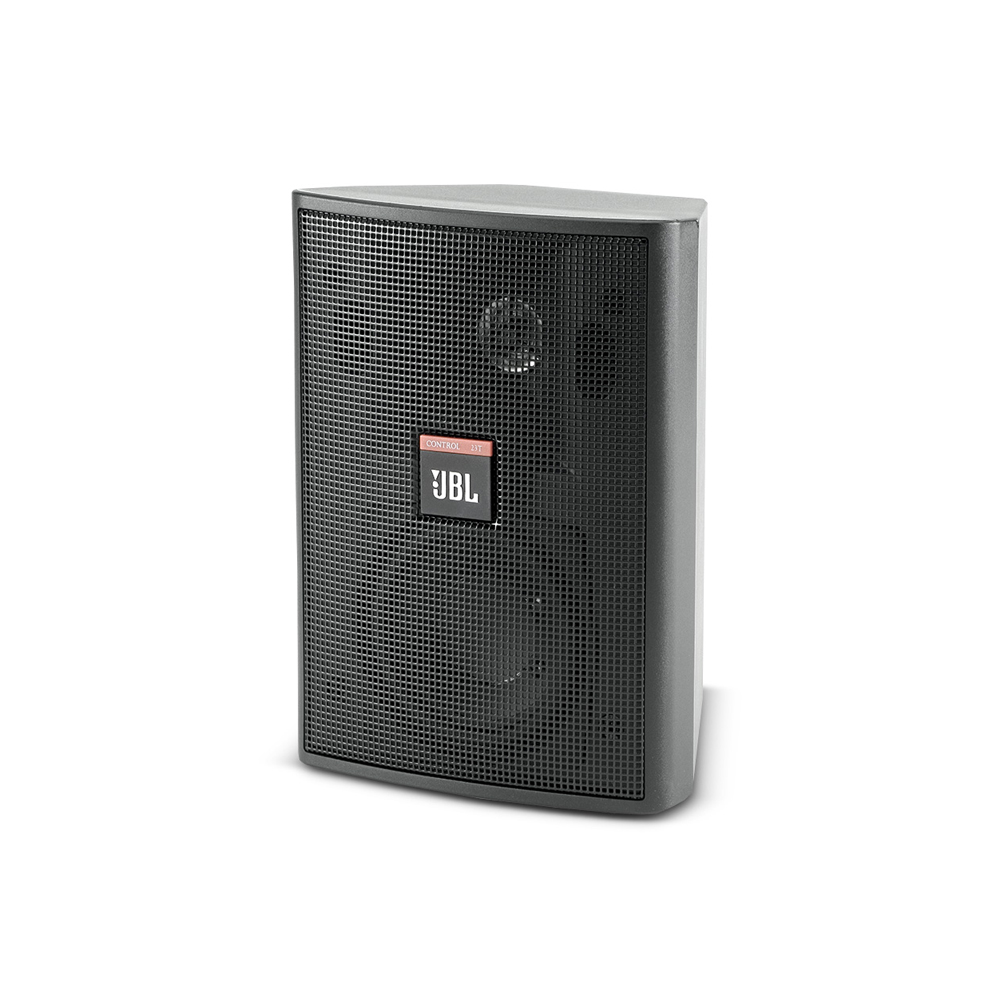

JBL CONTROL 23T

Ultra-Compact Indoor/Outdoor Background/Foreground Loudspeaker

The Control® 23T is the most compact of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers making it a perfect choice for patios, foyers, retail or other applications where foreground/background music and paging are required, with minimum aesthetic impact.

JBL CONTROL 23T FEATURE

Isolation transformer for 70.7 V / 100 V distributed-line sound systems.
Components: 3.5 in Polypropylene coated woofer, .5 in Titanium coated horn loaded tweeter.
Built-in InvisiBall® mounting hardware.
Weather resistant enclosure and transducers.

Readily paintable to match decor.
130 mm (5.25 in ) polypropylene coated woofer,
10 mm (.75 in ) titanium coated horn-loaded tweeter.
90° x 90° high frequency horn.

Thông số kỹ thuật của JBL CONTROL 23T

Frequency Range: 100Hz to 21kHz (-10 dB).
Power Capacity: 50 W Continuous Program Power; 25 W Continuous Pink Noise.
Transformer Taps: 5 W @ 70V, 10 W @ 100V (IEC pink noise, 100 hrs.).
Directivity Factor (Q): 4.8 dB.
Directivity Index (DI): 6.8 dB.
Nominal Impedance: 8 ohms.
Crossover Frequency: 3.5kHz.

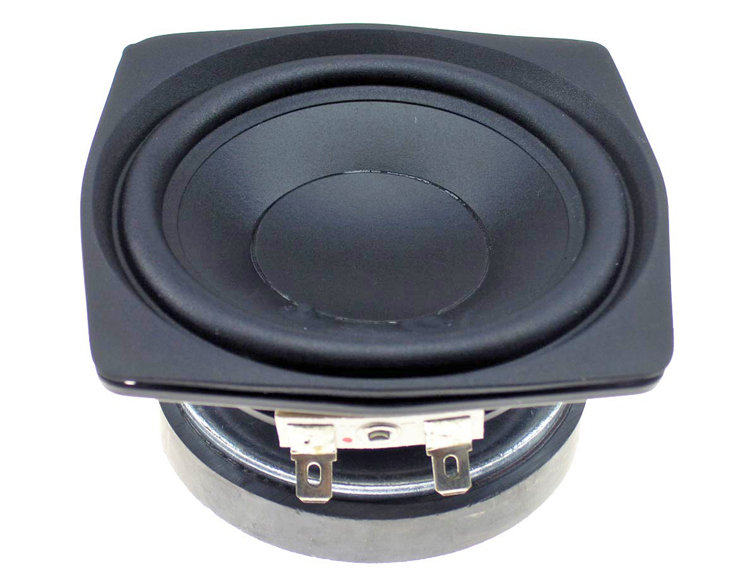

LF Driver: 88mm (3.5 in) Polypropylene cone w/ WeatherEdge.
HF Driver: 13mm (.5 in ) Titanium coated polycarbonate.
Enclosure Material: HIPS (High Impact Polystyrene).
Overload Protection: Full-Range power limiting to protect network and transducers.

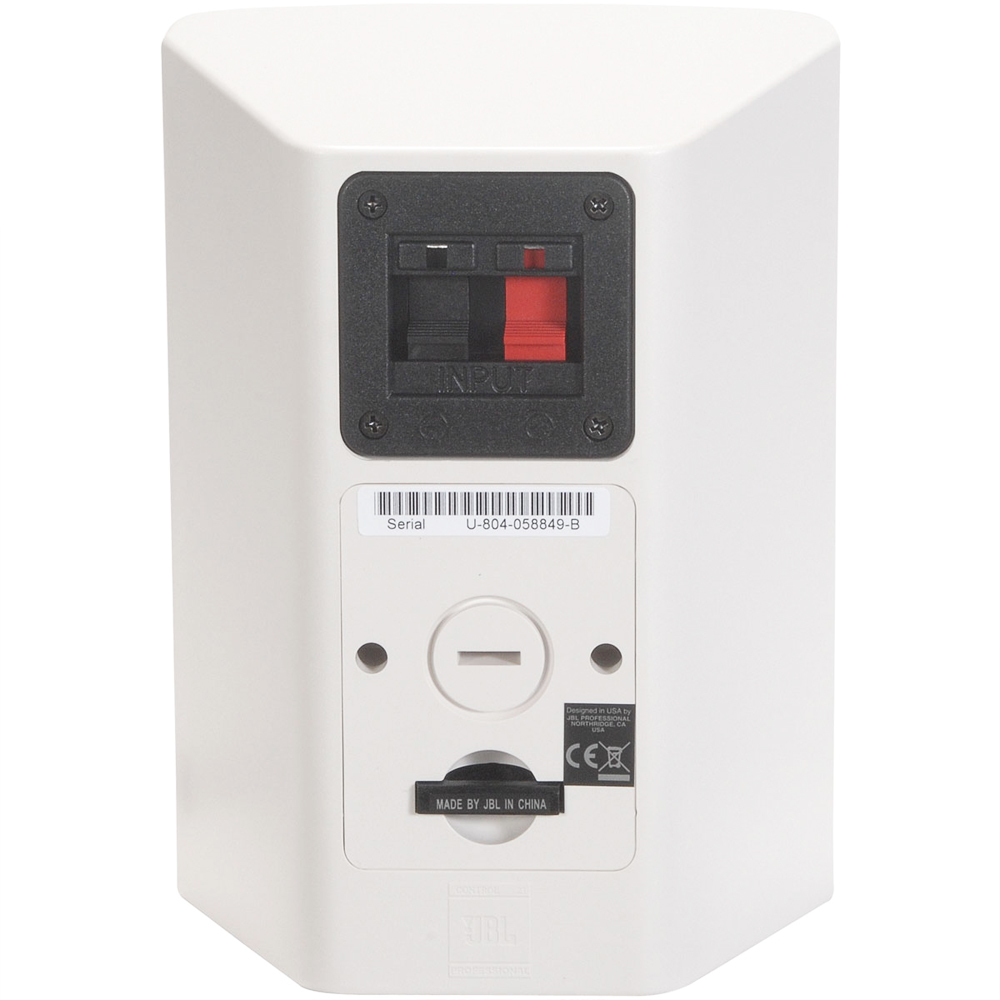

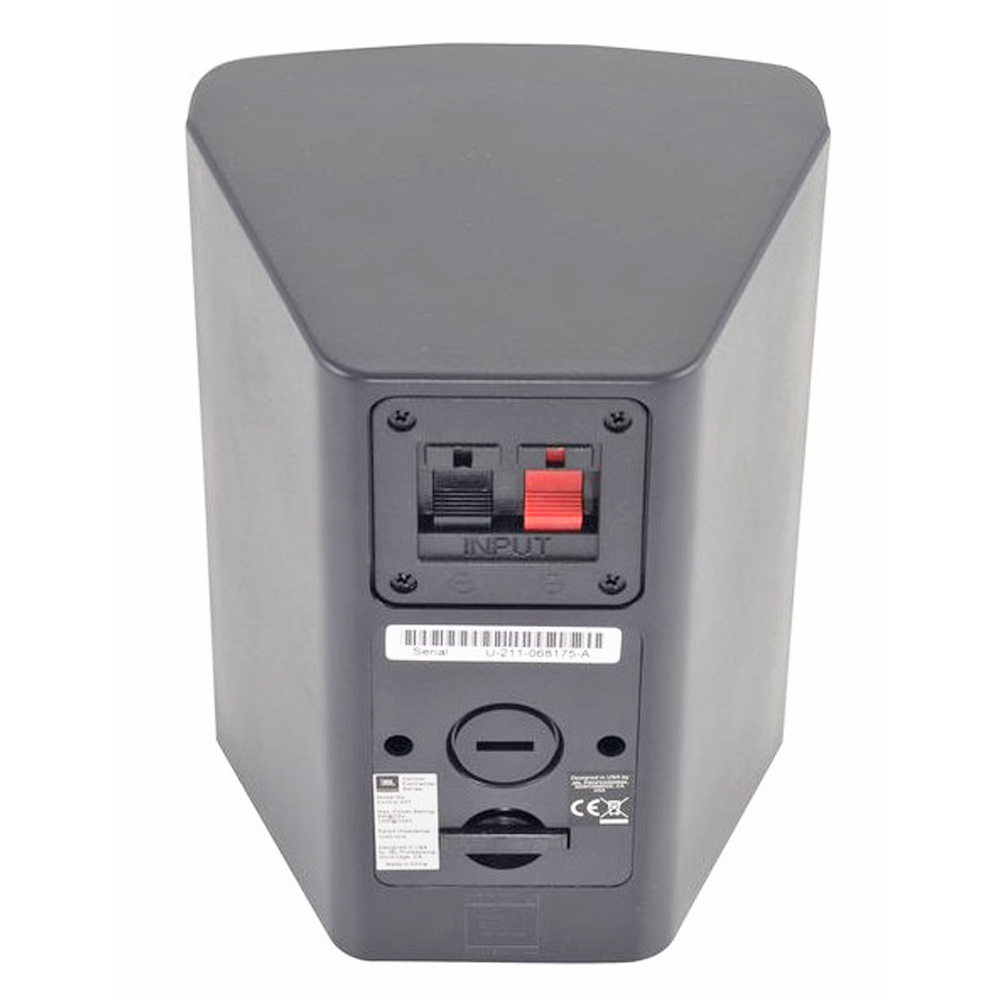

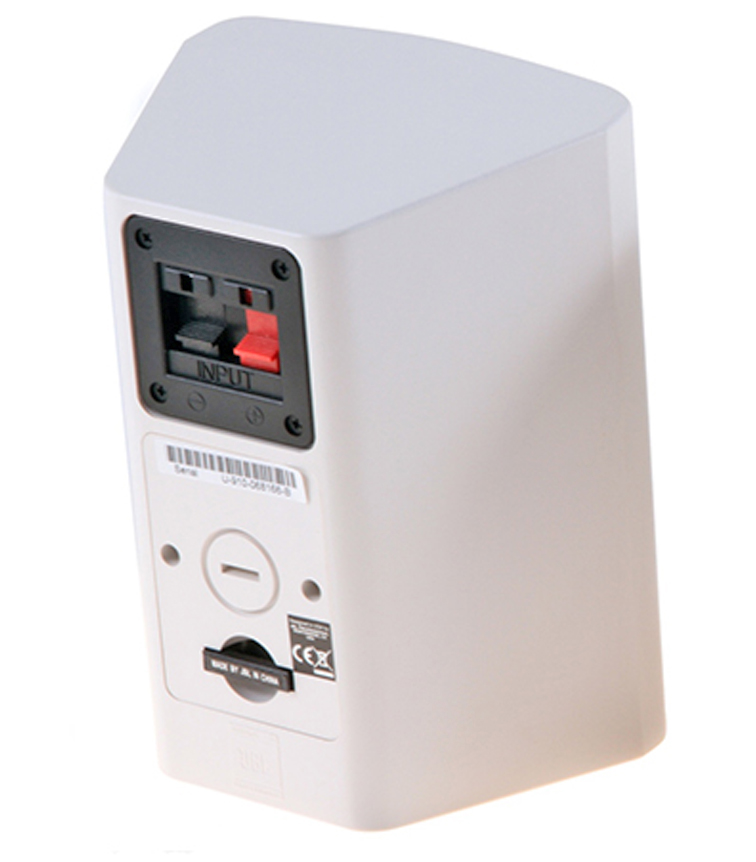

Terminations: Spring terminals, accepts banana plug.
Safety Agency Rating: Transformer UL1876 recognized.
Environmental: Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating.
Dimensions (H x W x D):

193 x 140 x 111 mm.
(7.6 x 5.5 x 4.4 in).

Net Weight (ea): 1.8kg (4 lb).
Shipping Weight (ea): 4.1kg (9 lb).
Included Accessories: variety of paints and finishes to Invisiball Assembly 4mm x 80mm hex key.
Optional Accessories: MTC-23V: For vertical columnar orientation of up to 3 loudspeakers polypropylene and terminating its MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array.

SAIGON HD cam kết toàn bộ sản phẩm do chúng tôi cung cấp ra thị trường đều là Hàng chính hãng, được phân phối chính thức tại thị trường Việt Nam. Nếu Quý khách hàng phát hiện ra bất kỳ sản phẩm nào sai cam kết trên, chúng tôi chấp nhận chịu trách nhiệm trước pháp luật và đền bù thiệt hại đến Quý khách hàng.

Frequency Range: 100Hz to 21kHz (-10 dB).
Power Capacity: 50 W Continuous Program Power; 25 W Continuous Pink Noise.
Transformer Taps: 5 W @ 70V, 10 W @ 100V (IEC pink noise, 100 hrs.).
Directivity Factor (Q): 4.8 dB.
Directivity Index (DI): 6.8 dB.
Nominal Impedance: 8 ohms.
Crossover Frequency: 3.5kHz.
LF Driver: 88mm (3.5 in) Polypropylene cone w/ WeatherEdge.
HF Driver: 13mm (.5 in ) Titanium coated polycarbonate.
Enclosure Material: HIPS (High Impact Polystyrene).
Overload Protection: Full-Range power limiting to protect network and transducers.
Terminations: Spring terminals, accepts banana plug.
Safety Agency Rating: Transformer UL1876 recognized.
Environmental: Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating.
Dimensions (H x W x D):

193 x 140 x 111 mm.
(7.6 x 5.5 x 4.4 in).

Net Weight (ea): 1.8kg (4 lb).
Shipping Weight (ea): 4.1kg (9 lb).
Included Accessories: variety of paints and finishes to Invisiball Assembly 4mm x 80mm hex key.
Optional Accessories: MTC-23V: For vertical columnar orientation of up to 3 loudspeakers polypropylene and terminating its MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array.

Loa, sách hướng dẫn, phiếu bảo hành.
