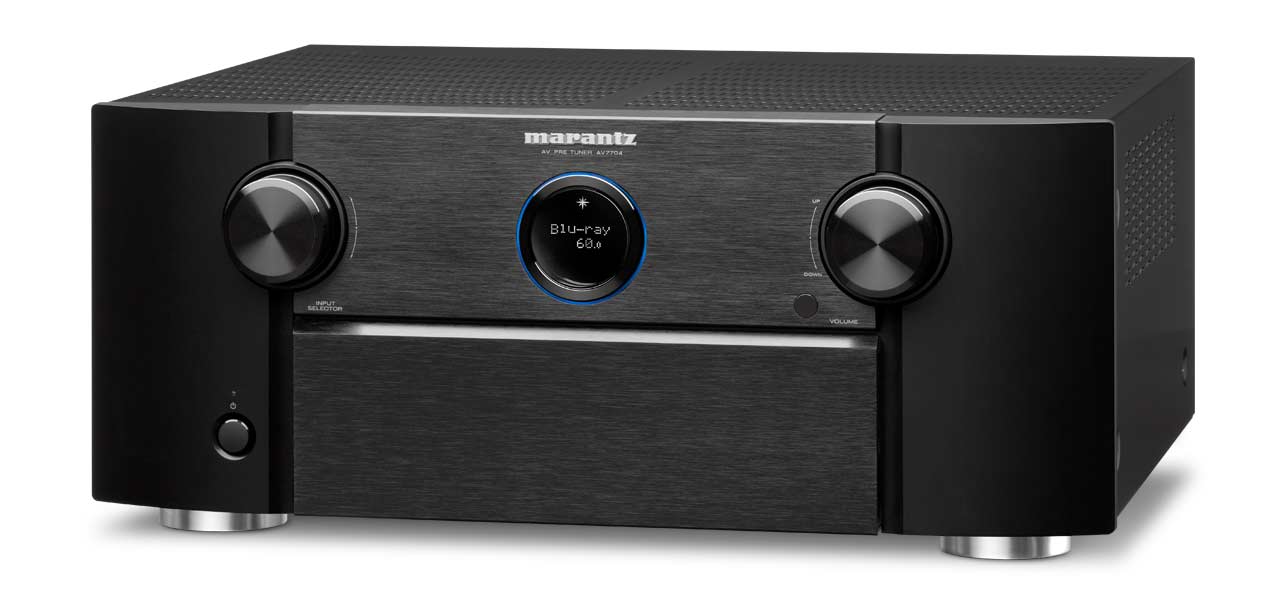

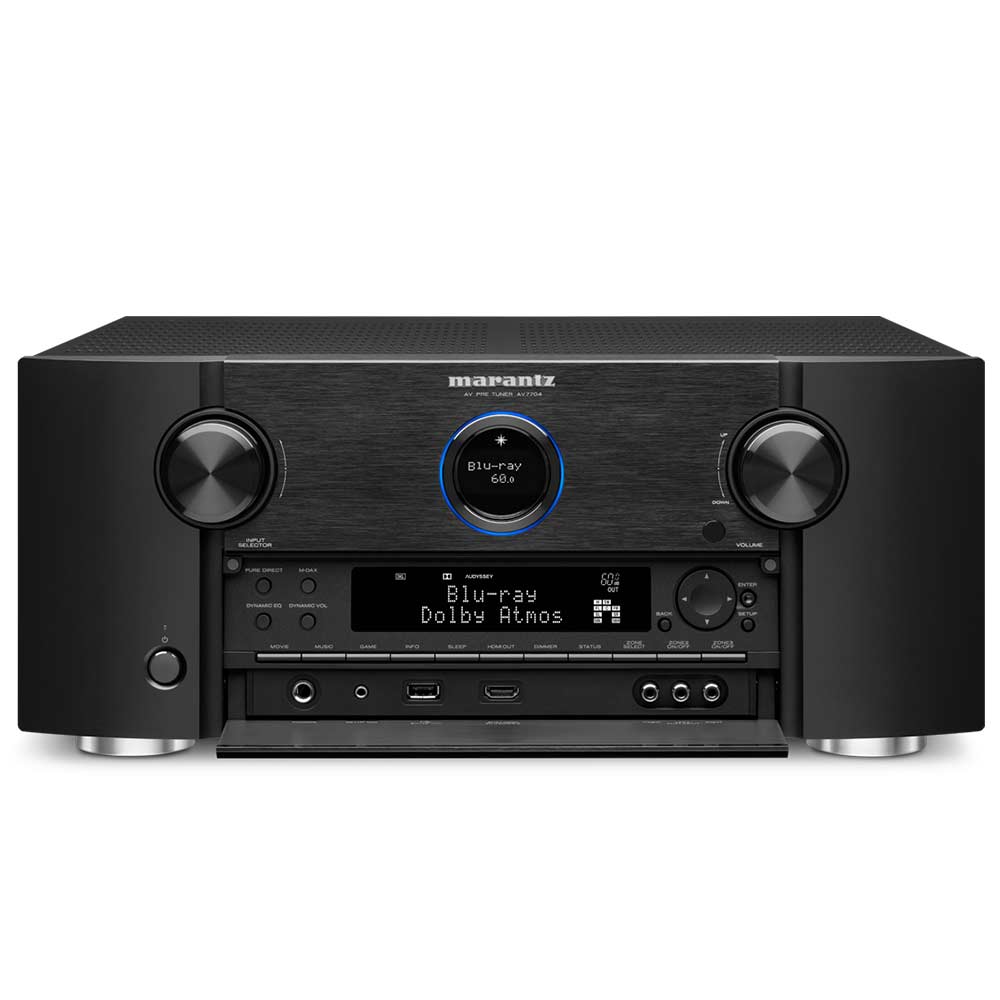

MARANTZ AV7704

Experience the most versatile home theater setup with the new Marantz AV7704 processor/pre-amplifier. It combines the unique Marantz audiophile sound with all the latest home cinema technologies, including Dolby Vision compatibility, HLG, and all 3D surround sound formats already built-in.

For those building the ultimate home entertainment system, the AV7704 is a no-compromise 11.2-channel AV processor and pre-amplifier, designed for use with high-quality external power amplification or active speakers. It takes on board all the latest features, including Dolby Vision compatibility, unparalleled 3D surround sound decoding and HEOS music streaming, but dispenses with the internal amplification, allowing all the design and engineering within to be dedicated to producing the purest possible sound, and avoiding any possible interference from powerful amplifier sections creeping into the delicate digital and analog signal sections. It’s long been common audiophile practice to separate pre-amplifier and power amplifier sections in this way, allowing power supplies and circuit layouts to be optimized for their specific purposes. The AV7704 even enhances audio quality by delicately handling all signals via the Marantz's own current feedback HDAMs preamp, before passing them to the high-quality 11.2 channel XLR or 11.2 RCA outputs and separate power amp.

Dolby AtmosDTS:XAuro-3D

AFeel every dimension in Dolby Atmos. Dolby Atmos transports you into the story with moving audio that flows all around you with breathtaking realism. Enjoy a 5.1 or even 7.1 surround sound speaker system and 4 additional overhead speakers or 4 Dolby Atmos elevation speakers for the ultimate home theater experience - including Dolby Surround upmixer for legacy content.

Built-in Bluetooth & Wi-Fi

Featuring Bluetooth & Wi-Fi wireless streaming connectivity, the AV7704 is equipped with an advanced dual antenna transceiver system, for robust streaming even in congested urban environments. With Apple's AirPlay compatibility, you can enjoy listing to your favorite tracks wirelessly from your favorite iOS device such as iPhone and iPad.

Wifi, Airplay, Bluetooth

The HEOS app will open the gate to multiple steaming services to play on your AV7703 or any other connected HEOS devices for endless fun! Those services include Spotify, TuneIn Internet radio, Sound Cloud, Tidal, Deezer, and more. You can also stream music contents using the HEOS app from your phone, USB stick, or local drives such as NAS connected to the same network. Favourites and playlist functions are supported.

HEOS + Alexa — Speak Your Commands

Use your voice to stream your favorite music services to this HEOS-enabled device. Ask Alexa to play music from Pandora, Spotify, Amazon Music and much more. Switch between inputs (Blu-ray, DVD, Media Player, etc.), turn volume up or down, pause, mute and play the next song — all with your voice. To start streaming with Alexa voice commands, open the Alexa app and select “Skills.” Add HEOS Home Entertainment to enable. Then, go to Smart Home in the Alexa app menu and choose Devices and Discover or say “Alexa, discover my devices.” With HEOS Home Entertainment and Alexa, you can stream to this product and any other HEOS-enabled device.

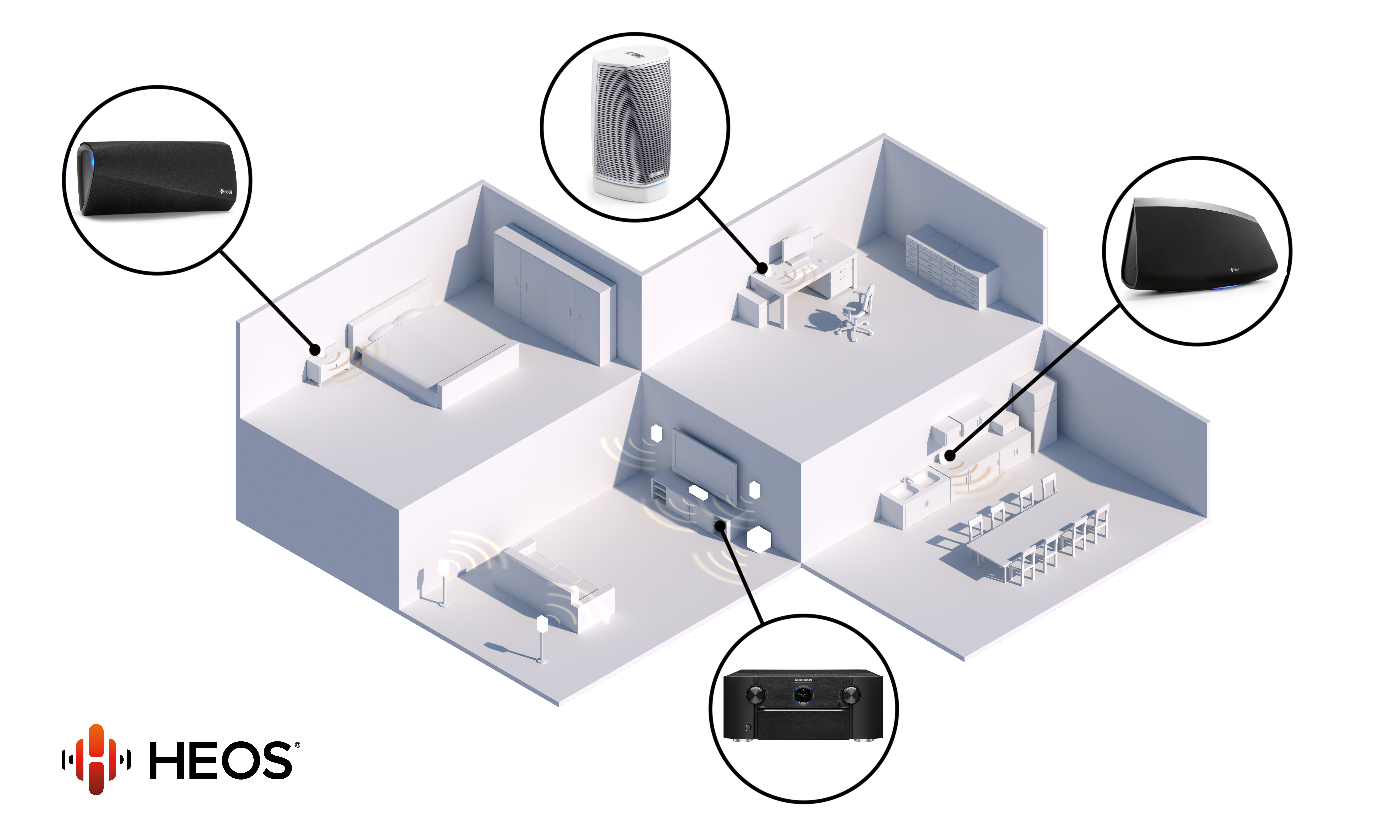

Welcome HEOS Multiroom

Latest HDMI 2.0a Connectivity; HDCP 2.2 Compatible; ISF-Certified

Prepared for the future, the AV7704 features an advanced video section that's fully compatible with the latest HDMI and HDCP 2.2 specifications on all 8 HDMI inputs. With 4K Ultra HD 60Hz video, 4:4:4 Pure Color sub-sampling, High Dynamic Range (HDR) and 21:9 video, 3D, and BT.2020 pass-through support on every input, the AV7703 is ready for 4K Ultra HD Blu-ray disc players, set-top boxes and other 4K Ultra HD sources. Certified by the Imaging Science Foundation, the AV7703 features a full suite of video calibration controls (for use by an ISF technician), along with ISF Day and ISF Night video modes.

The video processor also has the ability to transcode and upconvert standard definition and high definition analogue and digital video content to 4K Ultra HD, breathing new life into your favourite legacy sources. The AV7703 features 8 HDMI inputs, including 1 conveniently located on the front panel, and 3 HDMI outputs - 2 for the main zone, and 1 for the 2nd zone.

Hi-Res Audio

Discover the incredible fidelity of high resolution audio with the AV7704's ability to decode up to 24-bit/192-kHz ALAC, FLAC and WAV lossless files as well as DSD 2.8MHz and 5.6MHz tracks (the audiophile format of SACD). Play hi-res music via the front panel USB port and network sources, and also listen to other popular file types such as MP3.

Smart TV Connectivity

Via the HDMI CEC (consumer electronics control) functionality in your Smart TV, you may be able to control your Marantz AVR with the Smart TV's remote control. With "HDMI control" set to ON in your receiver, you can set "Smart Menu" to ON to start controlling your Marantz AVR with your Smart TV's remote. The Smart Menu home screen provides you quick access to source and surround mode selections, the AVR's setup menu, and 4 Smart Selects.

Connect your Smart-TV

Audyssey Platinum Room Correction Suite

Equipped with the full Audyssey Platinum suite of advanced DSP algorithms, the AV7704 features Audyssey MultEQ XT32 automatic room acoustic correction. With the supplied measurement microphone, MultEQ XT32 analyzes each speaker's output (including the subwoofers) at up to 8 measurement locations and generates precision digital filters that optimize each channel for the correct frequency and time domain response.

Audyssey Dynamic Volume smoothes out annoying jumps in volume (such as TV commercials), letting you listen at lower levels and still enjoy clear dialogue, music and sound effects. Audyssey Dynamic EQ provides precision tonal tailoring for full range clarity at any listening level.

Audyssey Low Frequency Containment uses advanced psychoacoustic algorithms to deliver a full range tonal balance, including deep bass, but without disturbing close-by neighbours or family members in other rooms, and features a multi-step adjustment that lets you dial in the amount of containment to your preference.

Audyssey Sub EQ HT provides individual DSP tailoring of each subwoofer in a dual subwoofer setup, for deeper bass with improved definition, compared to a single subwoofer configuration.

Marantz 2016 AVR Remote

Designed from the ground up, the Marantz 2016 AVR Remote is a brand new app for iOS, Android Phone and Tablet devices that will give you an unprecedented level of command and control over the latest generation of Marantz network AV Receivers. Along with many new features, the graphics and user interface have been completely overhauled. Control the basic functions of your Marantz product with power, volume, input and settings.

Dual Subwoofer Outputs

With a single subwoofer, optimum placement within the room for the best bass response isn't always possible. Depending on the location, bass response at the main listening position can be uneven with audible peaks and dips. With 2 subwoofers positioned in different locations, response averaging evens out the low bass range for more accurate bass anywhere in the listening area.

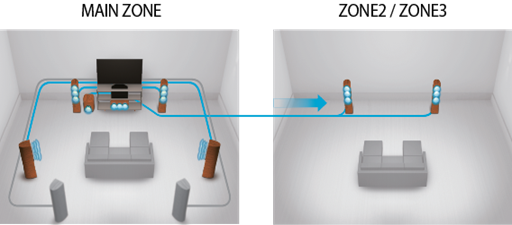

Multi-Source/Multi-Room

You can enjoy your favorite movie in the main room, while others enjoy stereo sound from different sources in 2 other rooms. The AV7703 is equipped with 2nd and 3rd stereo zone pre-amp output. There's also a dedicated HDMI output for 2nd zone audio and video so you can have 2 different video sources in 2 different rooms at the same time.

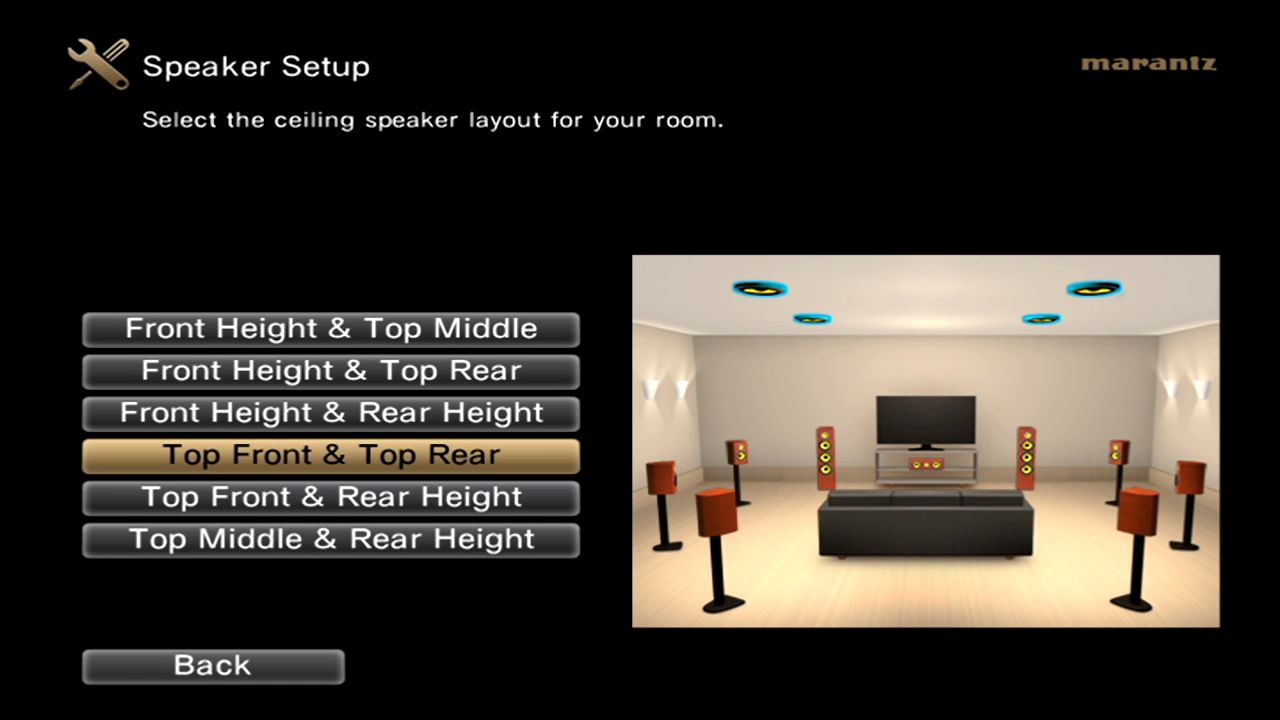

Easy To Setup, Easy To Use

Featuring a clear, easy to understand graphical on-screen display, the AV7703 guides you through the setup process that ensures the right configuration the very first time. Our exclusive Setup Assistant and the included Quick Start guide together provide easy setup guidance, optimizing critical settings for the best possible sound quality with your particular equipment configuration.

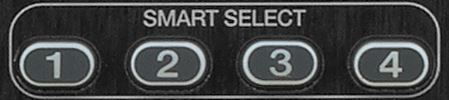

Easy To Use Smart Select Functions

There are 4 Smart Select function buttons on the front panel and the remote control. These let you choose your favourite sources and each one remembers your preferred sound mode for that source.

Specifications of MARANTZ AV7704

• DTS HD Master / DTS:X : o / o
• DTS Neo:X / DTS Neural:X : - / o (11ch)
• DTS Virtual:X : o (update)
• Dolby TrueHD / Dolby Atmos : o / o
• Dolby ProLogic llz / Dolby Surround : - / o
• Auro 3D : o
• Audyssey DSX : -
• Multichannel Stereo : o
• Max Number of Processing (Preamp) Channels : 11.2
• Auto Speaker Setup by Microphone : Audyssey MultEQ XT32
• FL Display : 2 lines + port hole
• Graphic User Interface - GUI : Advanced
• ISF Certification : o
• GUI Languages : 3
• Setup Assistant : o
• Smart Select : o
• Firmware Update by Network / USB : o / o
• Variable Cross Over : o
• Optimized Bass Redirection : o
• Bass Sync : o
• ECO Mode : -
• Auto Power off : o
• Sleep Timer : o

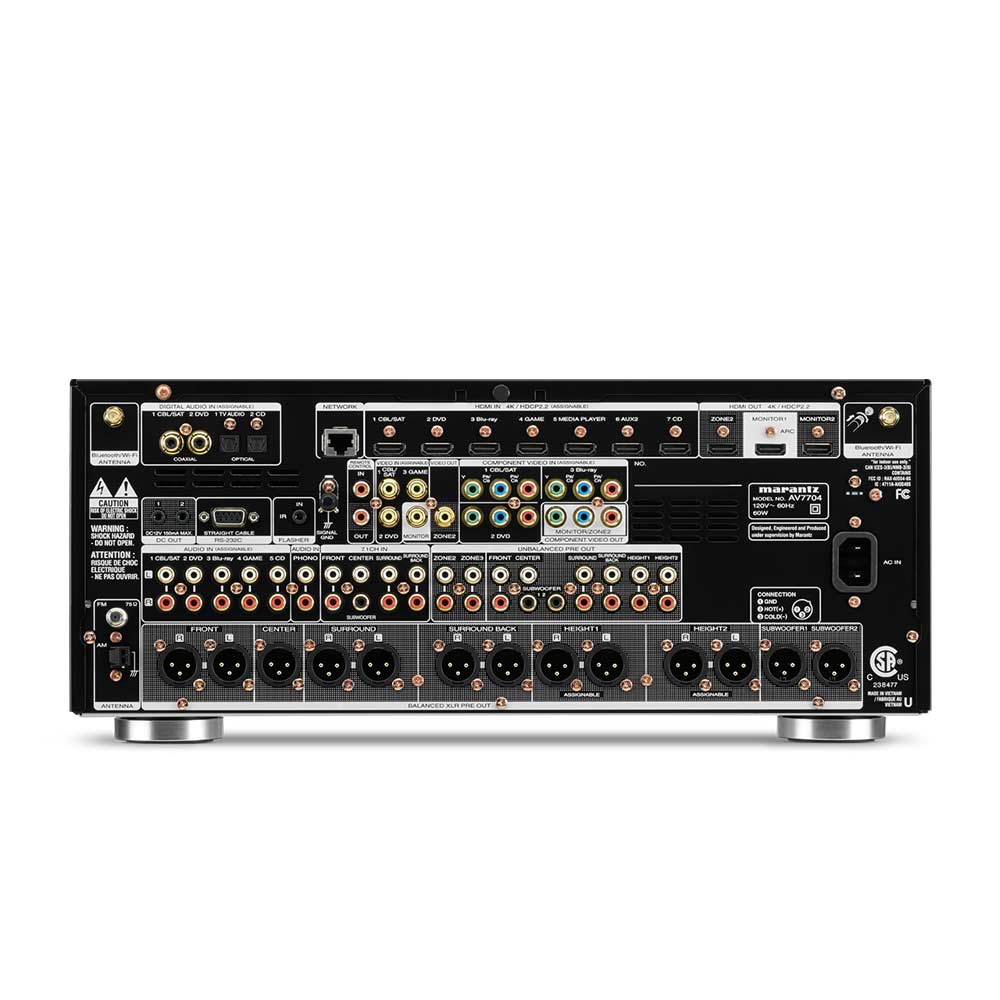

• Composite In / Out : 3+1 / 2
• Component In / Out : 3 / 1
• HDMI In / Out : 7+1 / 3
• Multi-Room Video Out: Video / HDMI : o / o
• AUDIO
• Analog In / Out : 5+1 / -
• Phono (MM) In : o
• Digital In: Optical / Coaxial : 2 / 2
• Multi-Room Out: Analog / Digital : 2 / -
• Multichannel Pre Out : o (11.2 RCA & 11.2 XLR)
• Subwoofer Out : 2 (independant)
• 7.1 Multichannel Input : o
• OTHER
• Speaker A / B : assignable pre out
• Bi-Amp Drive : assignable pre out
• Multi-Room Speaker Terminal : pre out
• Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB : o / o / - / o / o
• USB Audio / Made for iPod / Made for iPhone : o / - / -
• AM/FM Tuner : o
• Metal Front Panel : o

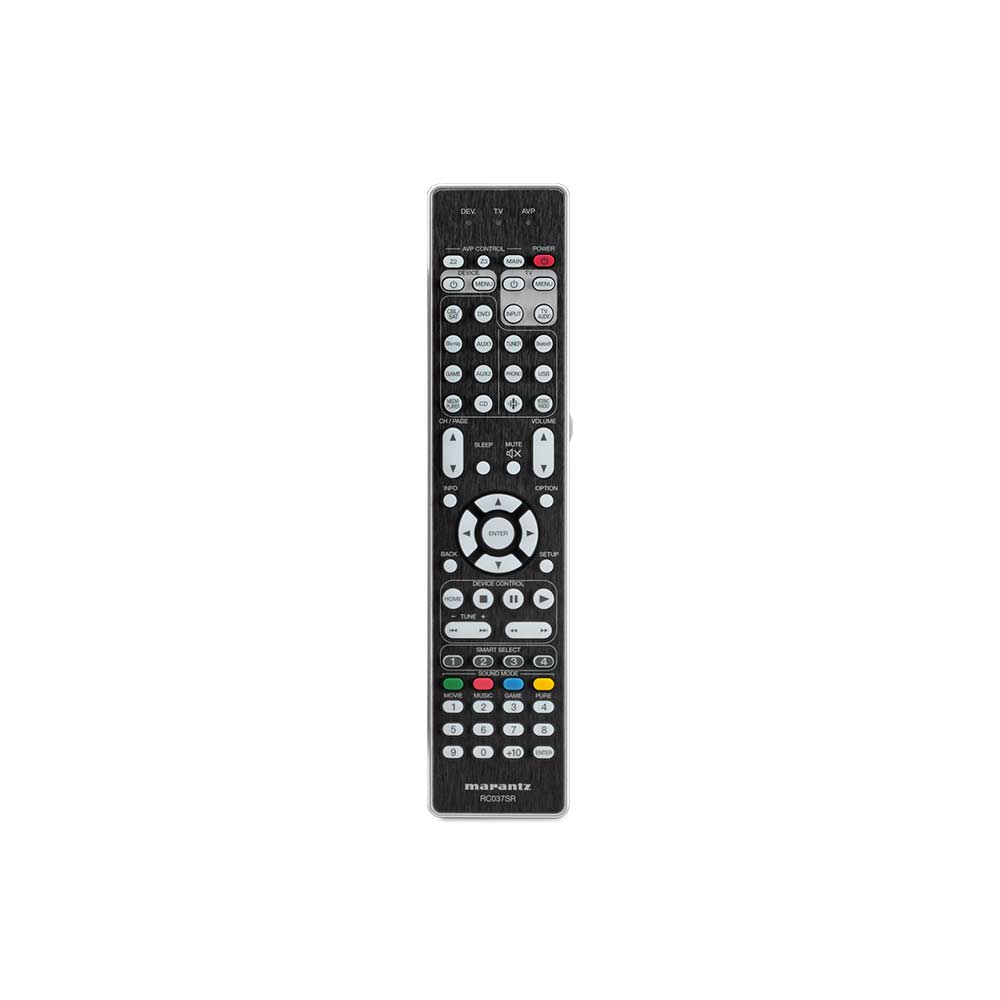

• System Remote Control : RC037SR
• Pre-Programmed / Learnable / LCD Display : o / - / -
• Power Consumption in W : 60
• Power Consumption No-Sound (ECO on / off) in W : -
• Standby Consumption in W : 0.2
• CEC Standby Consumption in W : 0.5
• Network Standby Consumption in W : TBD
• Network Control On Consumption in W : -
• Maximum Dimensions
• Antenna:Horizontal:(W x D x H) in mm  : 17.3 x 16.2 x 7.3
• Weight in lbs : 22.9
