LOA MONITOR AUDIO MR1

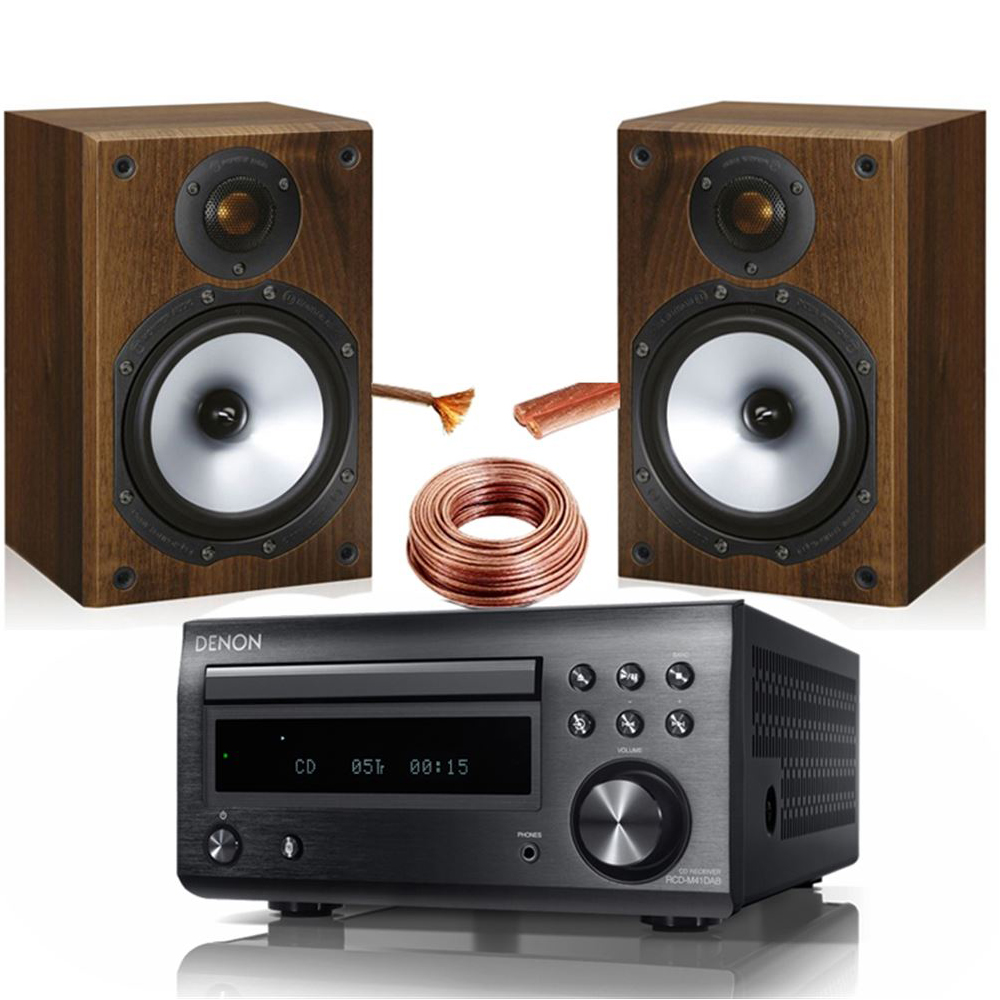

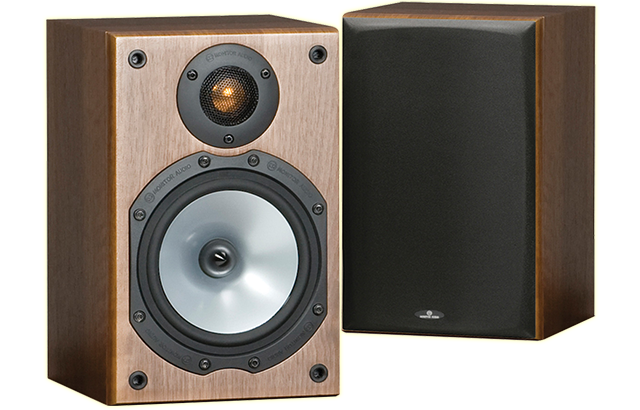

MONITOR AUDIO MR1 WALNUT

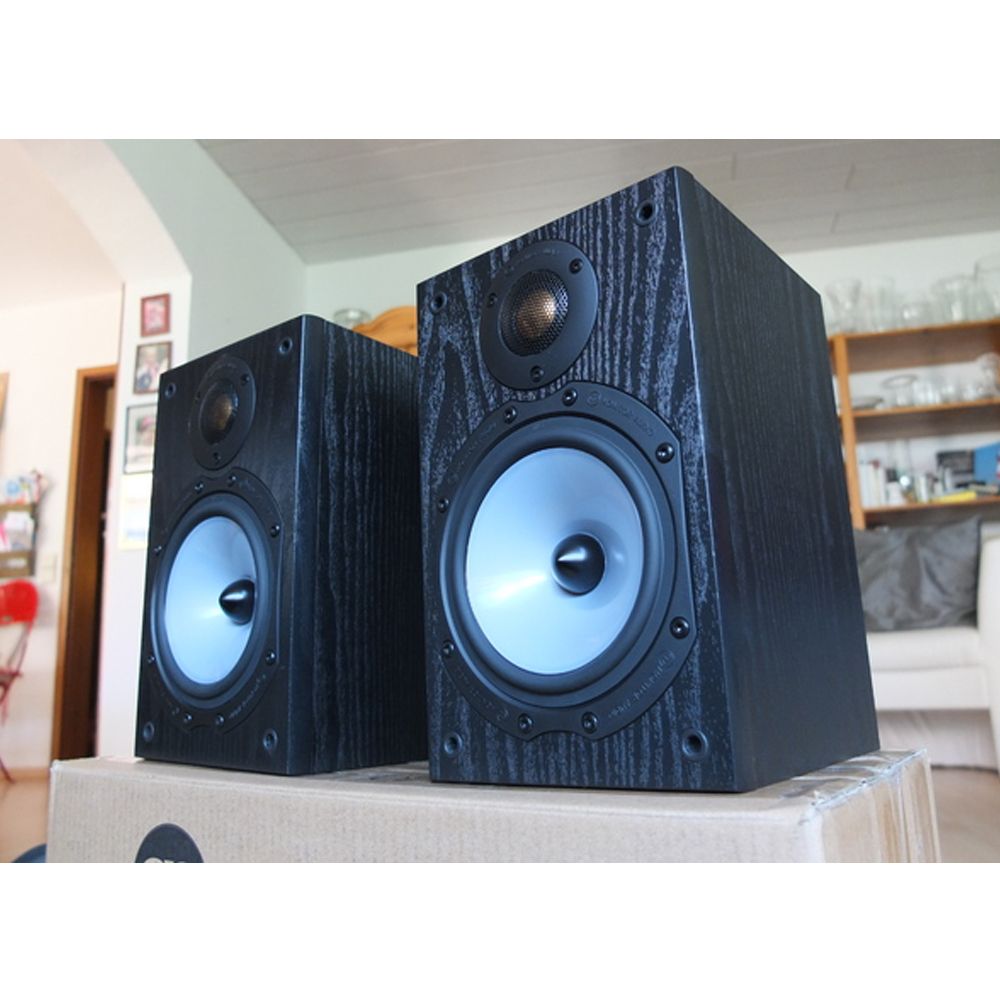

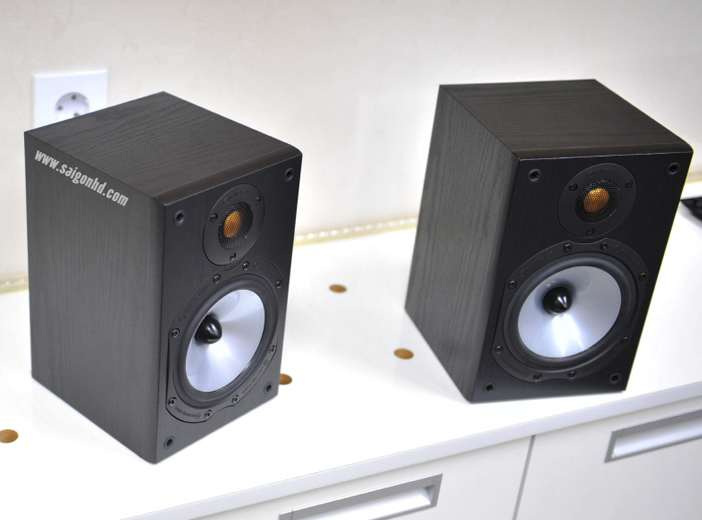

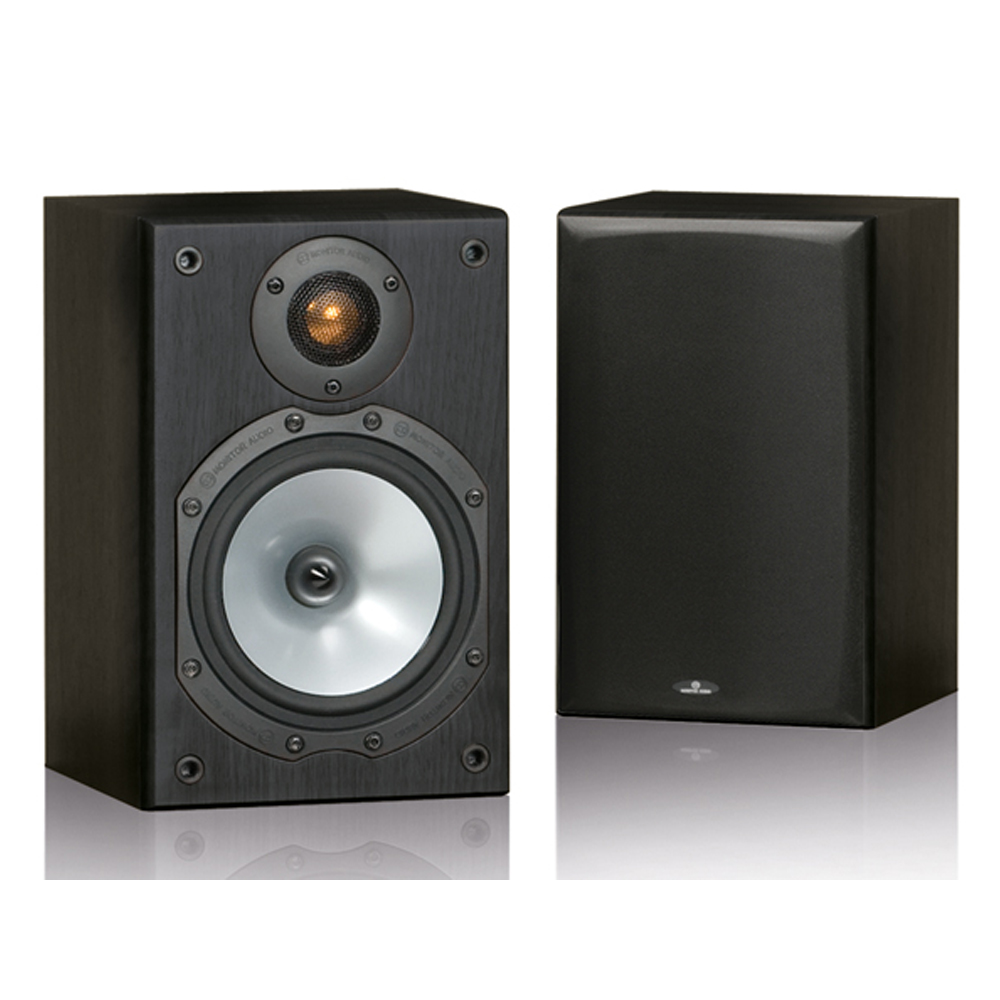

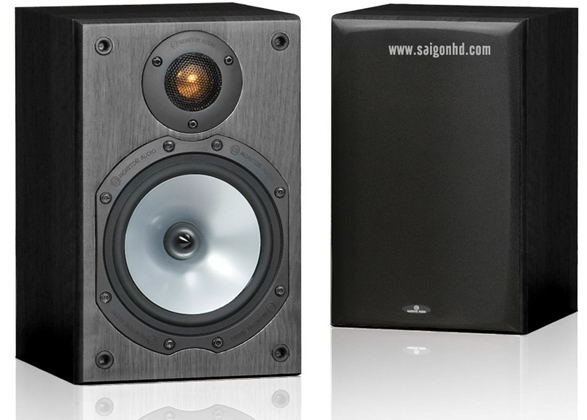

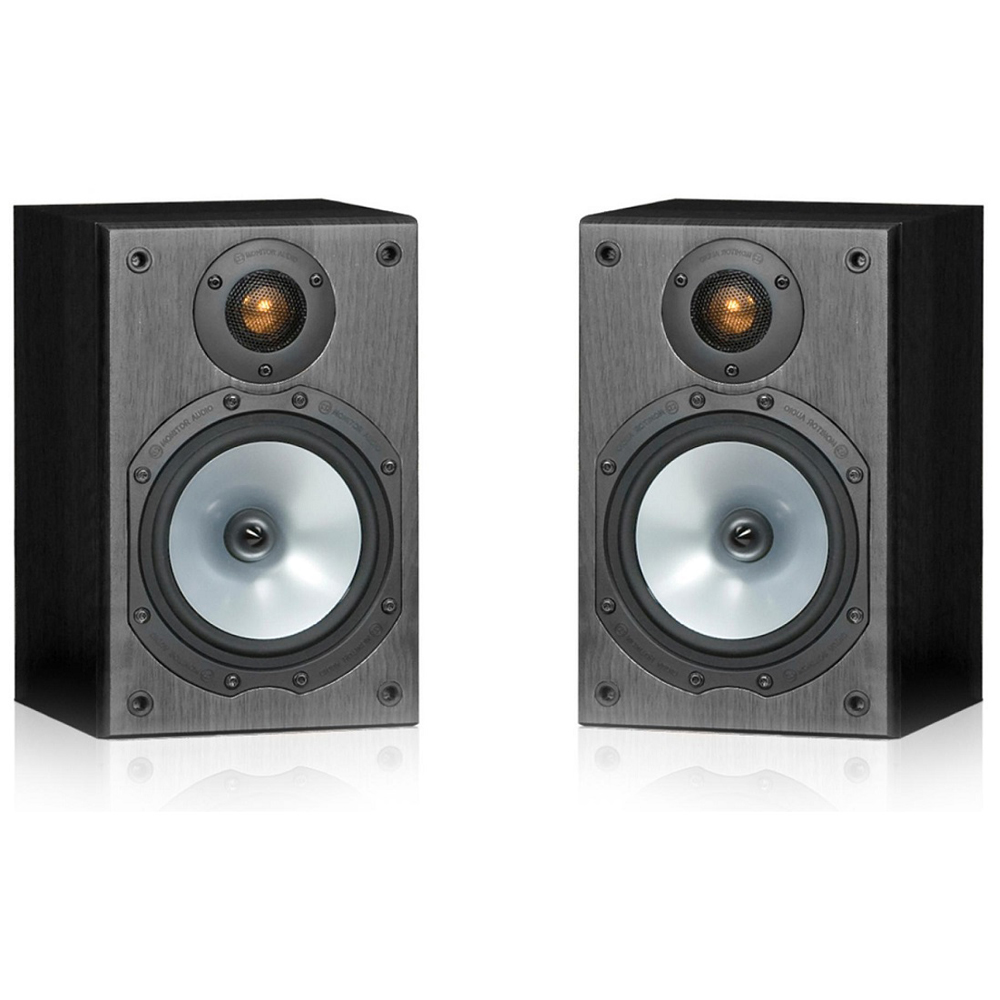

MONITOR AUDIO MR1 BLACK OAK VINYL

Small but mighty, the MR1 allows you to enjoy hi-fi sound even when space is restricted. Improving upon the design of its predecssor, the MR1 these compact speakers raise the bar for an entry level reference speaker. The rigid lightweight 5.5" metal matrix polymer bass driver and 1" ceramic-coated aluminium tweeter deliver a sound which is well defined, rhythmic and agile. Perfect for high-fidelity audio in any room in the home, small enough for desktop but with levels of reproduction which warrant a place in a hi-fi.

The MR1 can also combine with the matching Monitor Reference series centre and subwoofer to create a surround sound system which performs well above expectations.

MONITOR AUDIO MR1 FEATURE

Highlight:

• 5.5” MMP II bass/mid driver
• 1” C-CAM gold dome tweeter
• Rear ported
• Black Oak or Walnut pearlescent vinyl finishes
• Modelled on the hugely successful, award-winning Bronze Reference Series
• Re-tuned, optimising every detail to re-define our meaning of entry-level
• Equipped to compete with many more expensive offerings from rival brands and capable of jaw-dropping audio resolution in two-channel and multi-channel systems.

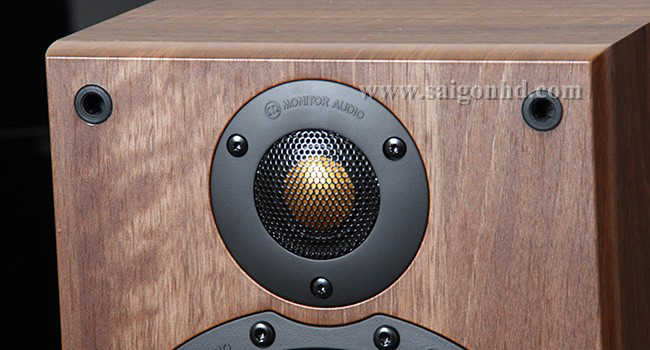

Gold Dome C-CAM

Advanced software simulation has allowed Monitor Audio to optimise the tweeter design bringing higher sensitivity and wider bandwidth to reveal the finest high frequency detail all the way up to 30kHz. Also developed was a sophisticated new tweeter chamber with graduated damping which controls undesirable resonances for a smoother more accurate response.

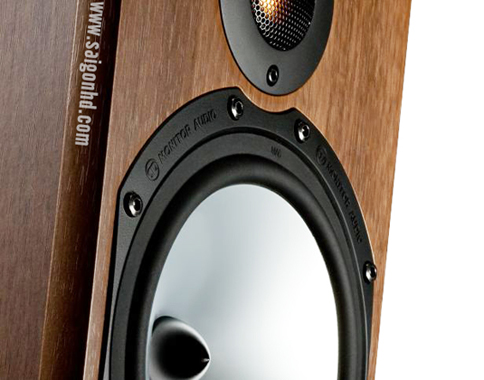

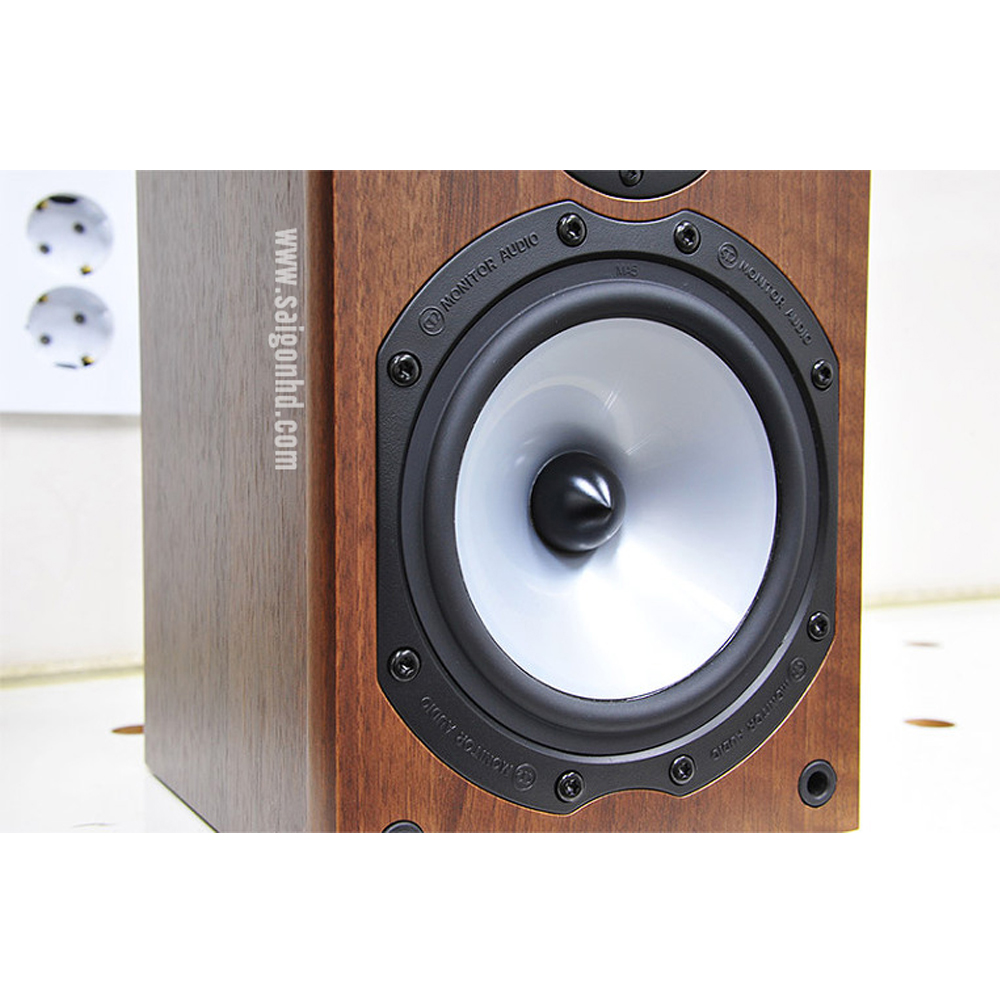

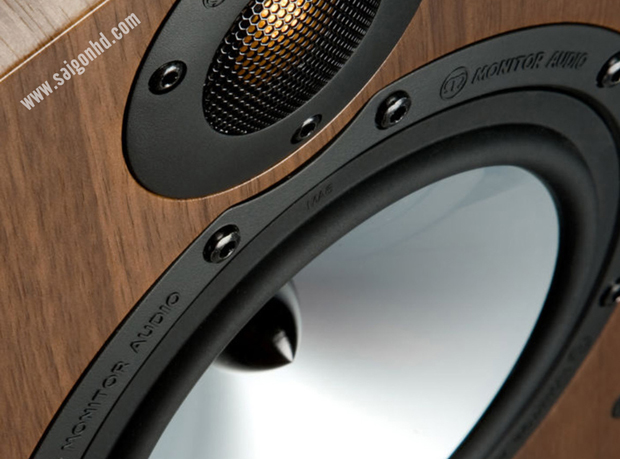

MMP II Bass Driver

Using a combination of detailed FEA analysis and improved material specification Monitor Audio developed a new, stronger driver chassis together with a more precise motor system for greater accuracy and deeper, faster bass. The new chassis topology reduces unwanted rear reflections and the refined motor system allows the driver a far greater excursion without distortion. The drivers are individually designed and optimised for each MR loudspeaker.

Custom Crossovers

Crossover design has been refined for each system using high quality components, skilfully arranged to reduce distortion for clean signal transfer. The new PCB layouts incorporating new laminated steel core inductors and audiophile-grade polypropylene capacitors keep signal paths as short as possible while isolating the components themselves from cross interaction and mutual coupling.

Improved Terminals

The new high-quality terminal panel blends easy access with high-end functionality and appearance.

Finish

So exceptional is the wood effect finish that it is difficult to tell apart from a real wood veneer. The MR range is available in a choice of black oak or walnut.

Specifications of MONITOR AUDIO MR1

• Frequency Response (Hz): 55Hz - 30kHz
• Sensitivity (1W@1M): 88 dB
• Nominal Impedance (Ohms): 6 ohms
• Power Handling (RMS): 70 W
• Recommended Amplifier Requirements (RMS): 15-70W
• Bass Alignment: Bass reflex. Rear ported.
• Drive Unit Compliment:
• 1 x 5.5" MMP II bass/mid-range
• 1 x 1" gold dome C-CAM Tweeter
• Dimensions(H x W x D): 260mm x 165mm x 180 mm
• Weight (kg):  3.5 Kg
