SUPRA DAC-XLR DIGITAL PC

TÊN SẢN PHẨM ĐVT GIÁ NIÊM YẾT
SUPRA DAC-XLR DIGITAL PC 1M Sợi 1,230,000
SUPRA DAC-XLR DIGITAL PC 2M Sợi 1,380,000

SUPRA DAC-XLR DIGITAL PC FEATURE

Trico

The 75 Ohm digital interconnects are designed for RCA (Phono connectors) interfaced transmission between CD transport and digital to analogue converter. They have the capability to transfer the full digital spectrum and can be used with a number of 75 Ohm applications.

Trico is a 75 Ohm double screened coaxial interconnect cable for digital/ video signals. An interconnect of extremely low capacitance. Supra Trico is insulated with PE foam which makes only 58 pF/m and makes the propagation velocity to 78% of light speed. Trico is double shielded with a braided inner screen of silver plated OFC copper and an outer of bare OFC copper. The screens provide efficient protection from hum and noise caused by electro–magnetical fields. The centre wires are made of silver plated OFC copper. The silver plating of the conductor/screen will also enhance the high frequency properties of the cable. Semi–balanced connection configuration makes the Trico cable immune to electro–magnetic interference, i.e. makes it noise free. It means that the outer screen is connected to earth at only one end of the cable, so there is no signal through that The earth connection is at the end where the marking text starts. Connect the earthed end to the signal source.

DAC-XLR

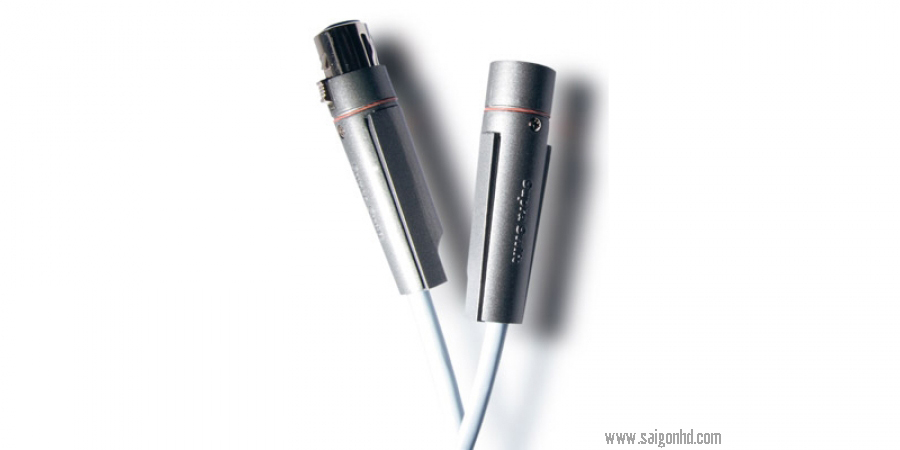

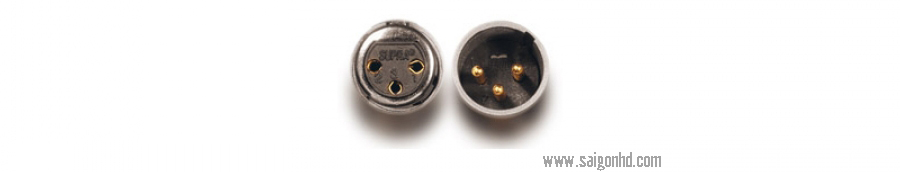

DAC is a 110 Ohm interconnect cable for XLR interfaced digital audio signals. AES/EBU harmonised. DAC–XLR is an interconnect with patented Supra Swift XLR connectors. Balanced

Application example: CD to DAC.

Specificatons of SUPRA DAC-XLR DIGITAL PC

  • Cross. Area: 0.54 / 20 (mm2/AWG)..
  • No. Wires:19.
  • Wire Diameter:0.19 (mm).
  • Wire Material: OFC.
  • Insulation: PE Foam.
  • Inner Screen Coverage: Cond. Nylon, 100%.
  • Jacket: Heat & ageing resitant PVC.
  • Ext. Diameter: 6.1 (mm).
  • Weight: 43 (g/m).
  • Resistance: 8.1 (Ohm/km).
  • Inductance: 0.28 (uH/m).
  • C: 45 pF/m.
  • Imp. Z: 110.
  • Velo Factor: 0.78c.

SAIGON HD cam kết toàn bộ sản phẩm do chúng tôi cung cấp ra thị trường đều là Hàng chính hãng, được phân phối chính thức tại thị trường Việt Nam. Nếu Quý khách hàng phát hiện ra bất kỳ sản phẩm nào sai cam kết trên, chúng tôi chấp nhận chịu trách nhiệm trước pháp luật và đền bù thiệt hại đến Quý khách hàng.

  • Cross. Area: 0.54 / 20 (mm2/AWG)..
  • No. Wires:19.
  • Wire Diameter:0.19 (mm).
  • Wire Material: OFC.
  • Insulation: PE Foam.
  • Inner Screen Coverage: Cond. Nylon, 100%.
  • Jacket: Heat & ageing resitant PVC.
  • Ext. Diameter: 6.1 (mm).
  • Weight: 43 (g/m).
  • Resistance: 8.1 (Ohm/km).
  • Inductance: 0.28 (uH/m).
  • C: 45 pF/m.
  • Imp. Z: 110.
  • Velo Factor: 0.78c.
