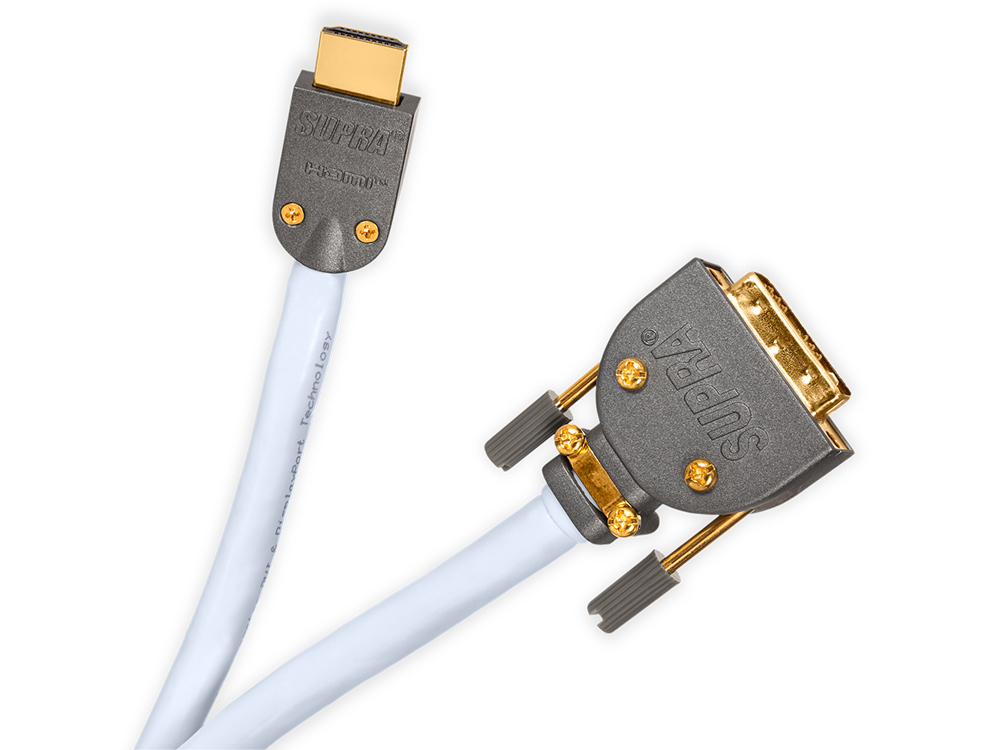

SUPRA HDMI-DVI HD VIDEO 2M

Supra HDMI-DVI - High Speed HDMI-DVI cable

The Supra HDMI-DVI cables connect computers, media players and screens for video and graphic images. SUPRA HDMI-DVI maintains the signal integrity up to >30metres cable length and allows transmissions in both directions i.e. the cable is bi-directional. It is available in two versions; HDMI-DVI and HDMI-DVI MET-S/B (Metal connectors with removable housings). HDMI-DVI is supplied with a moulded HDMI contact at one end (cannot be removed without cutting cable) and a removable DVI housing (the housing can be removed, but the contact block cannot without re-soldering). Provides for maximum resolution of 1920 x 1200P @ 24 fps (Hz).

SUPRA launched its first HDMI/DVI cable in 2004. Nine years of continuous product development has resulted in the Supra HD5 HDMI/DVI, which according to us is the best HDMI/DVI cable on the market. We guarantee that the cable can handle 1080P @ 24 fps up to 32m. Passively! The Supra HD5 cable itself is tested and approved in compliance with the latest test provisions by HDMI´s Accredited Testing Center in the USA. A secure quality guarantee of our HDMI/DVI cables. The bandwidth in the HD5 (used in all of our HDMI/DVI cables) is 1100 MHz, over three times (> 3 x !) the specified of HDMI High Speed (340 MHz). Talk about headroom! There are some interesting exotic cables out there claiming to do the job but only a few have the courage to let an independent institute validate claimed performance. Supra Cables is one of them.

SUPRA HDMI-DVI HD VIDEO 2M Features

• Transmits today’s challenging formats common for HDMI and DVI flawlessly
• Future proof - Meets today’s HDMI and DVI standards and known requirements of tomorrow
• Sturdy design - Withstand the normal installation abuse
• 23AWG leads - For minimum losses
• Triple screen technology - Provides for long distance clearance hence freedom of installation with maintained signal integrity
• Made in Sweden according to a three step quality plan - Unsurpassed quality and reliability

Specifications of SUPRA HDMI-DVI HD VIDEO 2M

Mechanical Specifications

• Standard HDMI 2.0 High speed ♦ DVI-D 18+1
• Connection configuration Single-Link
• Connectors 1 x HDMI and 1 x DVI piece
• Signal direction: Bi-directional
• Applications e.g. Projectors and computer displays with DVI inputs, computers with DVI outputs to HDMI displays
• Maximal resolution 1080p @ 24, up to 1920 x 1200 (16/10 aspect ratio, most often computer displays)
• Solder tin Almit SR-34 Super
• Cable clamping 1 x Molded HDMI or 1 x Supra HDMI Met-S/B with moulded contact body and 1 x Supra DVI-D 18+1 with moulded contact body connectors pieces
• Cable SUPRA HD5 single-link
• Lead area 5 x TMDS 0.26 / 23 mm2 / AWG
• Lead material Solid, oxygen-free coppar
• Di-electric (insulation) Air-injected PE foam
• Inner shield / coverage Aluminized PET foil / 100 %
• Communication leads 5 x 0.129 / 26 mm2 / AWG
• Di-electric (insulation) PE
• Outer shield / coverage Aluminized PET foil / 100 %
• Jacket Heat and age resistant PVC
• Cable outer dimension Ø 9.5 mm
• Weight without connectors 0.106 kg/m

Electrical performance

• Resistance 82 Ohm / km
• Capacitance 42 pF / m
• Characteristic impedance 100 Ohm
• Velocity factor 0.8 x C (speed of light)
