SUPRA PLY 2X3.4 B100

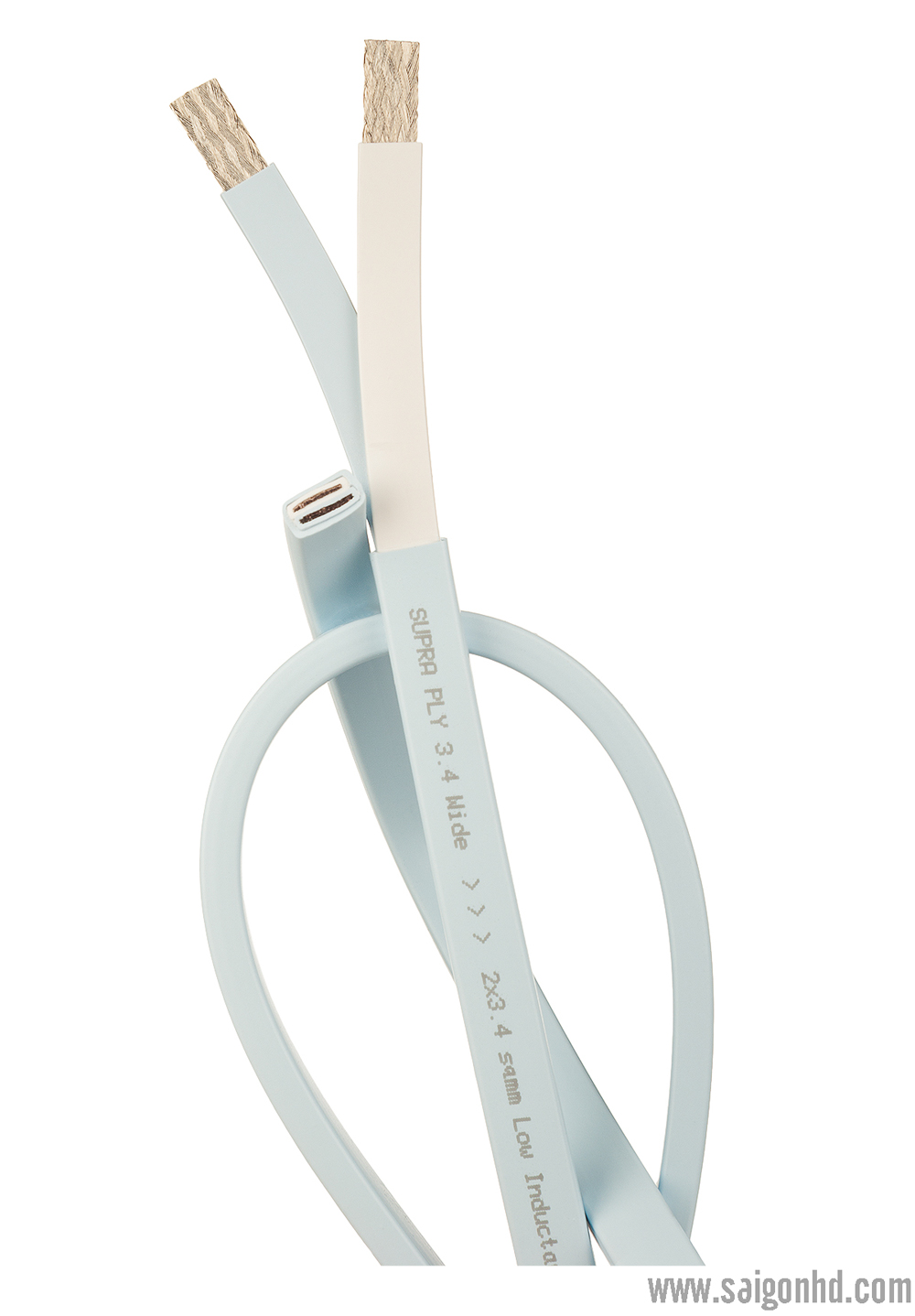

SUPRA Ply Wide 2 x 3.4 mm2 - Ultra Low Inductance

An evolution of the Ply concept. The tin plated conducter is rolled flat under high pressure in two steps. The advantage is much lower losses, exceptionally fast transient response, hence the transparent and dynamic sound.

Supra Ply Wide features and benefits

• Ultra low inductance - Good dynamics, crystal clear highs and sound stage presence.
• Easy to strip - No special tools needed
• Easy to connect - Connectors not necessary
• Tin plated - Anti-corrosive and counteracts disruptive and phase shifting electron jumps between strands
• Made in Ljungskile, Sweden!

Supra Ply Wide Concept - ’An elevated scientific design’

The rectangular shaped design as a result of two-step mangled braid cores, laid out closely to each other, reveals the potential of dynamics and transients of your Hi-Fi system. Further, it reduces interference and interaction distortion.

When mangling the braid to very thin conductor layers, extruding a thin layer of insulation and then putting them together with the flat sides facing eachother, the capacitance will increase significantly. An in-depth analysis require some mathematics exercise, so we leave the physical theory here and simply state that two conductors with different polarity laid out with a large mangled side area facing each other, will feel their individual charge, thus acting as a capacitor. If we just stopped there, we would not gain anything, but the real finesse it that the capacitance will raise at the expense of inductance! And, the capacitance is sonically less significant in the speaker circuitry. Further Supra Ply Wide offers the tin plated strands that reduce the disruptive electron jumps between lead strands resulting in a signal time shift, a very unwanted distortion when the original holographic 3D sound stage is desired.

Once again, Supra Cables design a "simple" yet ingenious cable that because of its physical properties counteracts malignant sonical behaviour, is cost efficient to produce, thus affordable to the customer and allowing for a better sonical experience.

Supra Ply Wide is available in blister packs, on bobbin or CombiCon pre-terminated lengths, all with the basic Ply sonic concept taken one step further.

Specifications of SUPRA PLY 2X3.4 B100

• Crossection area: 3.4 / 12mm2 / AWG.
• Number of conductors: 2 pieces.
• Number of strands per conductor: 192 pieces.
• Strand diameter: 0.15 mm.
• Conductor material: Tin plated oxygen free 5N Copper.
• Insulation and jacket: Heat and age resistant PVC.
• External size: 9.6 x 5.3 mm.
• Weight: 114g / m.
• Resistance: 5.1ohm / km.
• Inductance: 0.15µH / m.
