TEAC A R650MKII

The A-R650 MKII amplifier provides up to 2×120W of output power and can be used with speakers of between 4Ω and 16Ω impedance. That makes it the perfect amplifier choice, regardless of whether it's to be used with bookshelf monitor speakers or large floorstanding speakers. Because the amplifier is equipped with two pairs of speaker outputs you can also enjoy simultaneous sound in separate rooms.

Further features include an adjustable microphone input and a headphone output. A Phono input with built-in Phono equalizer amplifier is another attractive feature for traditional audiophiles. A system remote control unit that's able to control the CD-P650 CD Player and any UR-tagged TEAC components also comes as standard. TAPE2 Monitor delivers monitor sound from the TAPE2 input to the speakers, regardless of the input source.

A high-performance Stereo Integrated Amplifer

A discrete circuit design is employed for pre-amplifier section, to deliver a detailed yet abundantly musical quality. Your room will be filled with natural and powerful sound.

FET Differential Input 3-stage Pure Complimental Discrete Power Amplifier Circuit

The power amplifier section employs a Differential Input 3-stage Pure Complimental Discrete circuit with FET (Field Effect Transistor). The circuit design has an optimised layout to minimize interference and signal loss as it travels through the circuit board.

Mic input with mixing function

A mic input on the front panel allows users to stage Karaoke sessions by mix singing voices from a mic input with music from a selected input source. The A-R650MKII also helps users to record their Karaoke performances by sending the blended sound out to an external recording device such as AD-RW900 or CD-RW890.

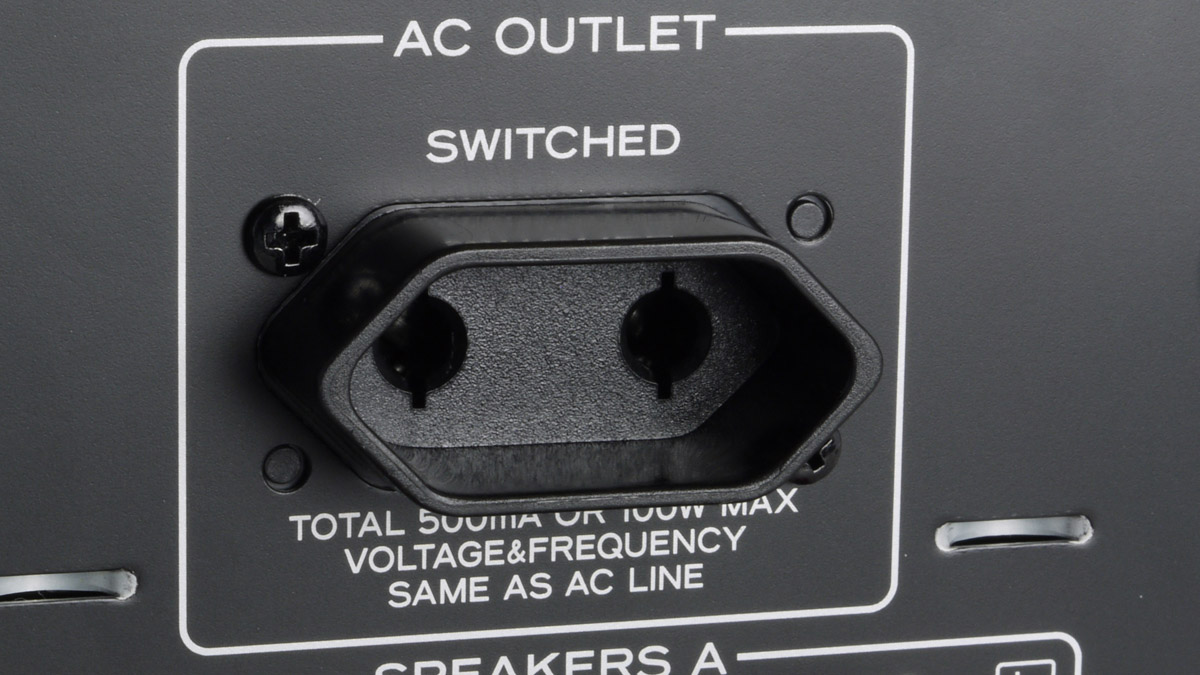

Auxiliary AC Output

The A-R650MKII also features a switched auxiliary AC output on rear panel (up to 100w), so users can connect a CD Player or component, minimising the number of plugs required.

Features at a glance

• 120W + 120W Output Power
• Differential input discrete amplifier
• FET differential input three-stage pure complementary discrete power amplifier
• Microphone input jack with Mic Mixing capability
• Two selectable speaker channels (Speakers A and B)
• Built-in phono-equaliser amplifier (MM type)
• Interconnection with iPod-compatible CD-P650 CD player
• Remote-controllable motor-driven volume control
• Balance, Tone Control (Bass, Treble), Loudness
• Source Direct
• TAPE2 Monitor
• Auxiliary AC Power Outlet (Switched, Max 100W)
• Gold-plated RCA terminals on Rear Panel
• Headphone Jack
• Complies with RoHS

Specifications of TEAC A R650MKII

• Maximum Output Power : 120W + 120W (4 Ω)
• Rated Output Power : 60W + 60W (4 Ω)
• Impedance : 4 Ω
• Frequency Response : 10Hz - 65kHz
• Overall : 20Hz - 20kHz
• Phono : 5Hz - 80kHz
• S/N Ratio : 65dB/90dB
• Phono/Line : RCA, Gold-plated-Coaxial,
• Connector : Screw-type - XLR - RCA - Optical , digital, 6.3mm(1/4") , stereo phone jack 6.3mm Monaural Jack
• Power Consumption : 300W
• Dimensions (H x W x D) : 142 x 435 x 355mm
• Weight : 9.2kg
• Color : Black
