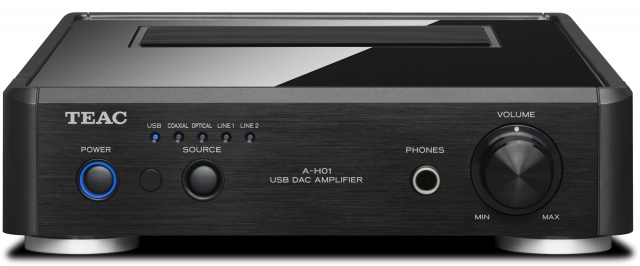

TEAC AI H01E

TEAC's A-H01 combines a high-quality D/A converter with a stereo amplifier to create a compact audio system for your home or office. Five stereo inputs are available – 2 analog and 3 digital format. The Burr Brown digital-to-analog converter supports high-resolution sample rates up to 192kHz/32-bit. The USB 2.0 input can be used with your Mac or Windows computer for audiophile-grade music playback of your music library. It's ideal for playback of FLAC, WAV, Apple Lossless and other high-res file formats.

The A-H01's connects to speakers through a B&O ICE power stereo amplifier providing 50W per channel. Heavy-duty, gold plated binding post terminals connect to speaker cable of any thickness. A subwoofer pre-out is provided for extra punch, and a great-sounding headphone amp for private listening.

Available in black or silver, the TEAC AH-01 is ideal for enjoying high-resolution playback from your computer.

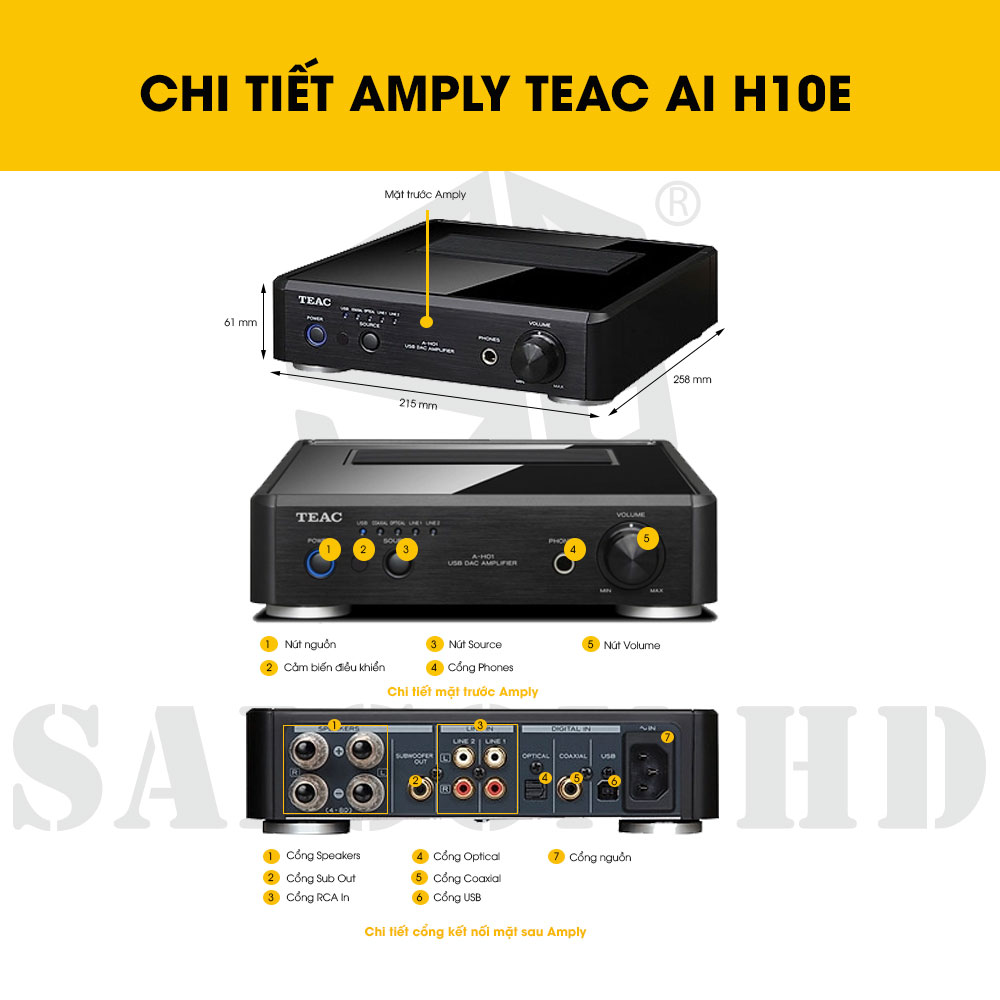

Expandability and Input/Output Connector Options Belying it's Compact Dimensions

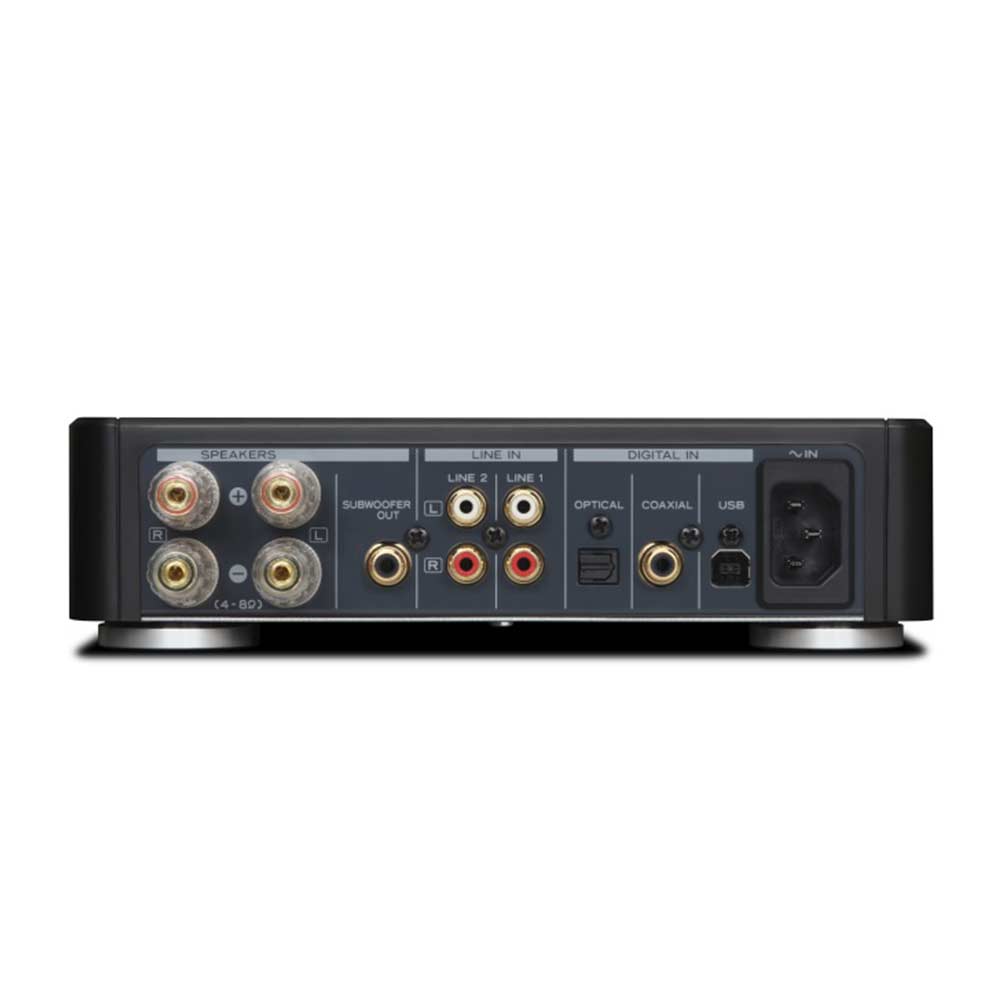

Despite its compact dimensions, the A-H01 offers the full range of connection outputs a listener would except of an amplifier designed for use in PC-based audio setups, including two digital inputs (one coaxial and one optical) and two analog inputs, in addition to a USB port (for connecting to a PC). The speaker connections are large binding post accommodating cables up to AWG8. The speaker connectors also support BANANA plugs and a subwoofer pre-out terminal.
A headphone jack lets users enjoy audio late at night, in spaces with neighbors close by or other situations where speaker playback might disturb others.

Built-in Burr-Brown PCM5102 DAC for a High Performance and a Broad Range of Digital Audio Sources
The A-H01 uses a Burr-Brown PCM5102 DAC. After installing the appropriate driver, listeners simply connect a Windows or Mac computer via a USB cable to ensure a digital signal path all the way to the DAC, transforming the iTunes or other media players into high quality audio devices. The A-H01's specifications will satisfy even the most fastidious of audiophiles, including support for audio sources of up to 24bit/192kHz and asynchronous USB.

High-Performance Components that Measure up to Full-Size Amplifiers

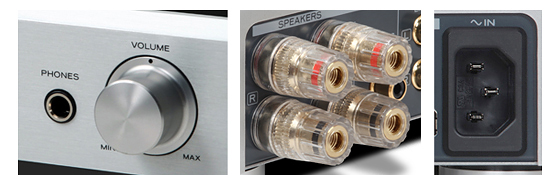

A-H01 incorporates a motor-driven volume knob and an aluminum front panel. Other components, including the large binding post speaker terminals and 3-pin power socket, are the same size as those found on full-size amplifiers. These design decisions ensure ease of use and secure connections, they also suggest the no-compromise approach taken in designing this compact audio unit.

Fan-Less Design for Refined Quietness
Efforts to eliminate signal noise for high-quality audio playback mean nothing with a noisy amplifier fan. To achieve the dual goals of high performance and compact dimensions – two parameters that conflict with efficient heat dissipation – circuit design and chassis design emphasized the selection and effective placement of potential heat-generating components to allow this high-performance compact amplifier to operate without cooling fans.

Specifications of TEAC AI H01E

• D/A Converter : BurrBrown PCM5102
• USB Audio Input : High-Speed
• Connector : USB-B, RCA Coaxial, Screw-type, XLR - RCA - Optical digital, 6.3mm(1/4") stereo phone jack, Subwoofer output
• Frequency Response : 10Hz to 80kHz (+/-3dB)115dB
• S/N Ratio : 100dB (LINE Input、IHF-A/input short)
• Maximum output : 50mW + 50mW (32 ohms loaded)
• Power Consumption : 34W
• Dimensions (H x W x D)/Cao-Ngang-Sâu : 61x 215 x 258 mm
• Weight / Trọng lượng : 1.6kg
